Falcon F1

Wideband Range 9 – 13 kHz

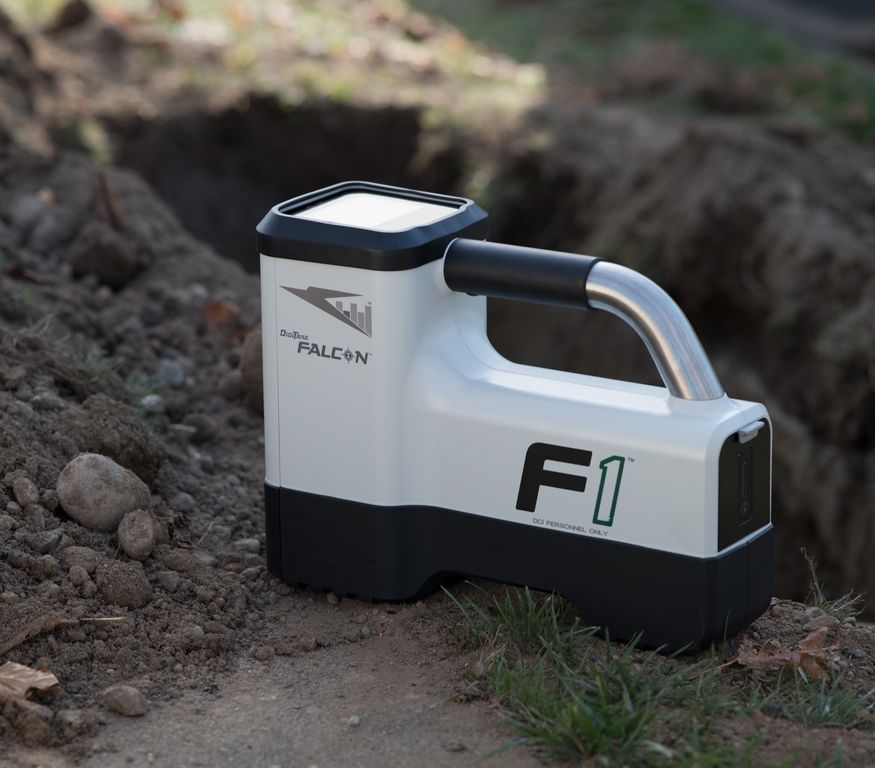

The new Falcon F1

    The all-new Falcon F1 is Easy to set up, Easy to use, and Easy to afford. It is the perfect locating equipment for the directional rod pusher like the TERRA-JACK. The F1 offers the following advantages:


  1. Increased depth and data range, 100/125 ft (30/38m) combined with more frequencies to get more jobs done.
  2. Dual power mode transmitters, Two easily selectable power modes for deeper bores, longer battery life and faster data rates.
  3. Quich scan pair, with just two clicks, it’s now easier to scan, pick and pair your locator to custom frequencies.
  4. Scans over 60 frequencies to customize your locator for your job site

The new Falcon F1
The new Falcon F1

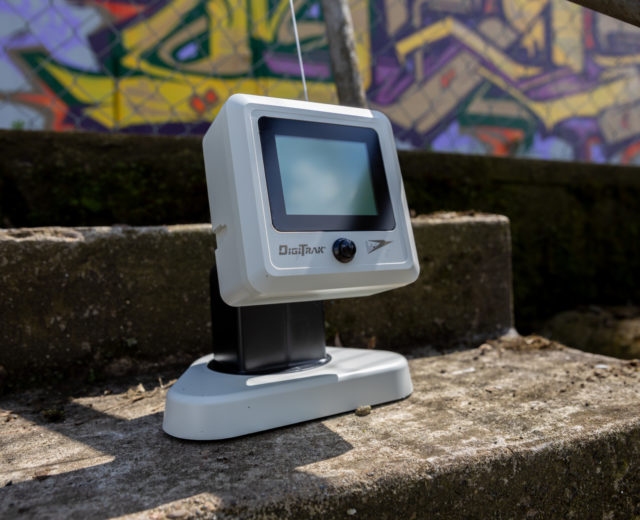

Falcon Compact Display

    The FCD is a rugged, entry-level display. A good choice for pit launchers and mini drills, its range also allows for longer shots.


  1. Power Source: Li-ion or NiMH battery pack
  2. Display Type: LCD
  3. Telemetry Range: 1000 ft (305m)

Falcon Compact Display
Falcon Compact Display




Technical Data

Technical Data



Technical specifications can be changed without previous notice.
Wideband range
9 - 13 kHz
9 - 13 kHz
Depth range
15 m
50 ft
Data range
20 m
65 ft
