All Terrain Directional Drills
All Terrain Directional Drills

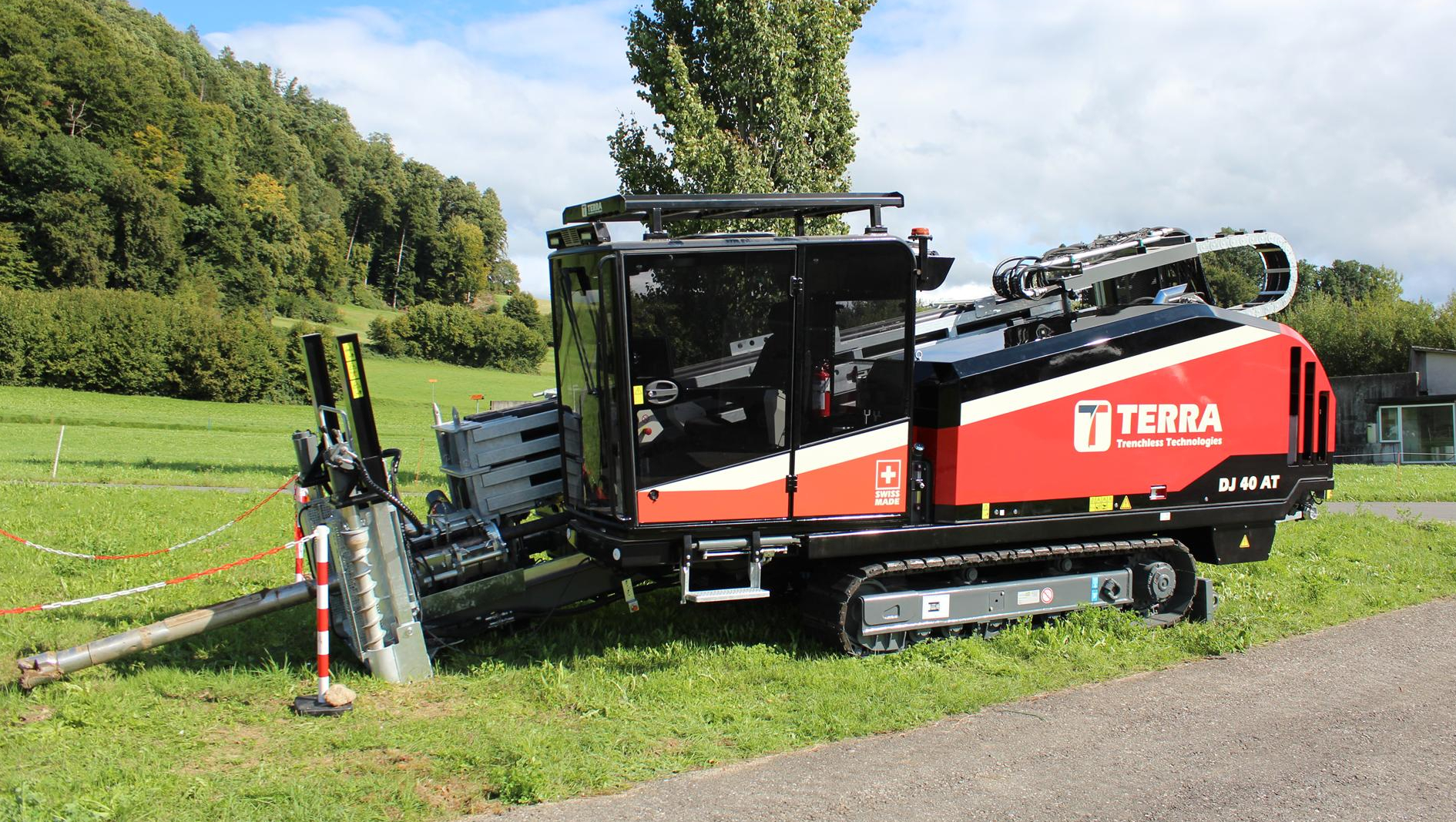

TERRA-JET DJ 40 AT

HDD class: 18 t

· Directional drilling in rock up to 200 m in length
· 18 t of thrust and pullback
· 8,000 Nm torque on the outer rod
· 2,400 Nm torque on the inner rod
· Bentonite flow rate: 510 l/min
· Cab with perfect all-round visibility

TERRA-JET DJ 23 AT

HDD class: 11 t

Doppelbohrgestänge Felsbohranlage TERRA, Dual Drill Rods Rock All Terrain AT, TERRA AG, Reiden, Switzerland
· Directional rock drilling up to 150 m in length
· 11 t of thrust and pullback
· 4,000 Nm torque on the outer rod
· 1,100 Nm torque on the inner rod
· Bentonite flow rate: 510 l/min
· Cab with perfect all-round visibility

The products

      HDD Directional Drills
               DJ 66e  (30 tons, fully electric)
               DJ 40  (18 tons)
               DJ 23  (11 tons, ideal for fiber optic cables)
               DJ 20  (9 tons)
               DJ 13  (6 tons)
               DJ 10  (4 tons)
      HDD Rock Drilling Machines
               DJ 40 AT  (18 t)
               DJ 23 AT  (11 t)
      Piercing Tools (Moles)
               Piercing Tools (long version)
               Piercing Tools (short version)
               Piercing Tools (traceable version)
               Accessories Piercing Tools
      Directional Rod Pusher
               JACK 200  Directional rod pusher
      Locating systems
               Falcon F5+  Locating systems
               Falcon F2+  Locating system
               Falcon F1  Locating system
      Mixing and pumping
               MS 700  2000 l
               MS 850e  2000 l
               MS 1200  4000 l
               Truck installation DJ 10-13  4 - 6 t
      Steel Pipe Ramming Systems
               Steel Pipe Raming
               TR 565
               TR 360
               TR 220
               TR 200mini
               Ramming accessories
      HDD Pit Launched Machines
               DJ 18 PIT  8 tons
               MJ 1600  6 tons
               MJLV 1600  6 tons
