Accessories Piercing Tools

Practice-oriented Accessories for Piercing Tools

Launching and safety accessories

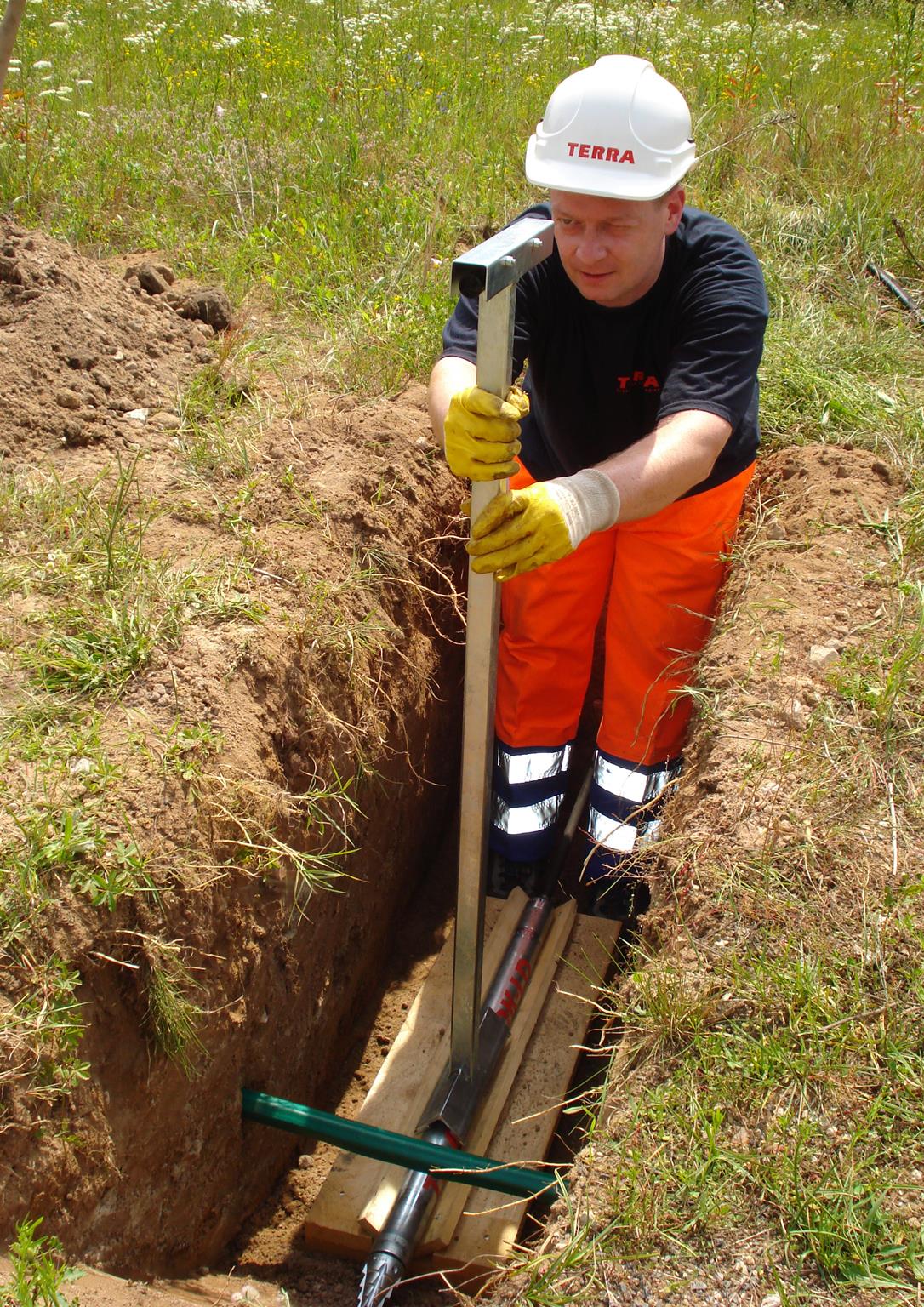

    Precise launching is achieved using the launching cradle and the height adjustable aiming staff with inclination scale.

      www.boreshop.com/aiming-staff

Launching and safety accessories
Launching and safety accessories

Pulling accessories

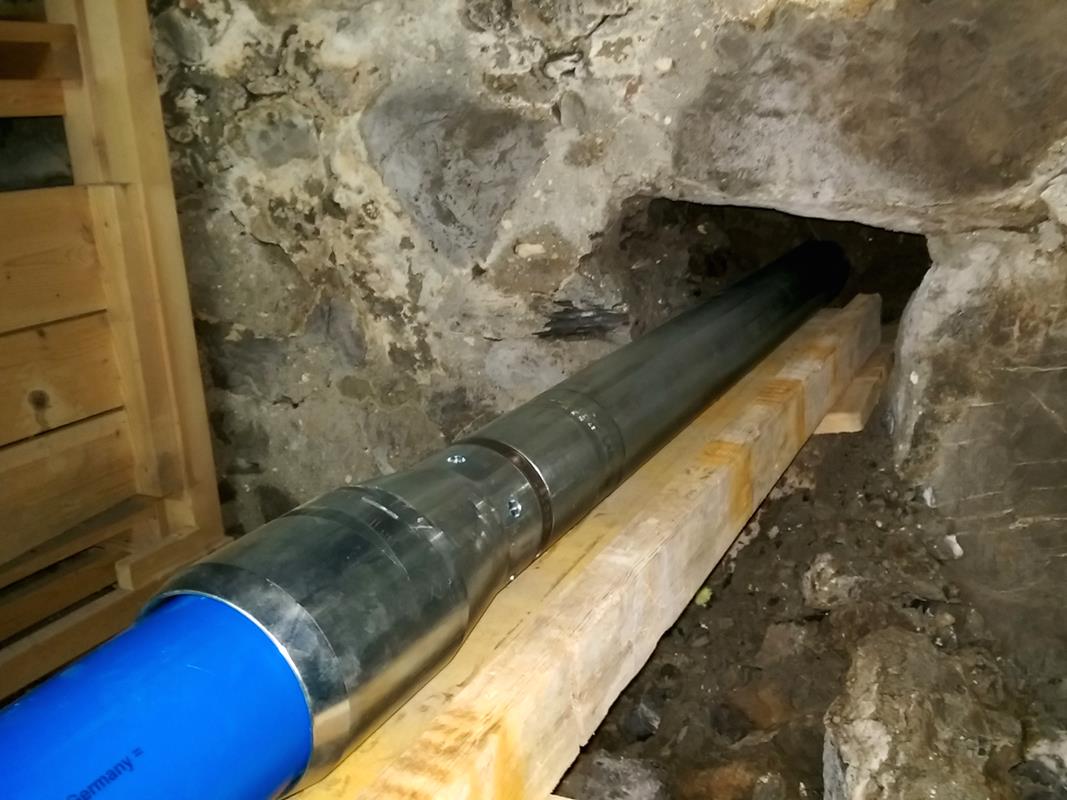

    Short and compact, with interchangeable centering adapter for different pipe sizes. Used with a pulling cable, short pipes or long lengths of pipes from a coil can be simultaneously pulled into difficult grounds during the piercing operation.

      www.boreshop.com/pipe-pulling

Pulling accessories
Pulling accessories

Expanding accessories

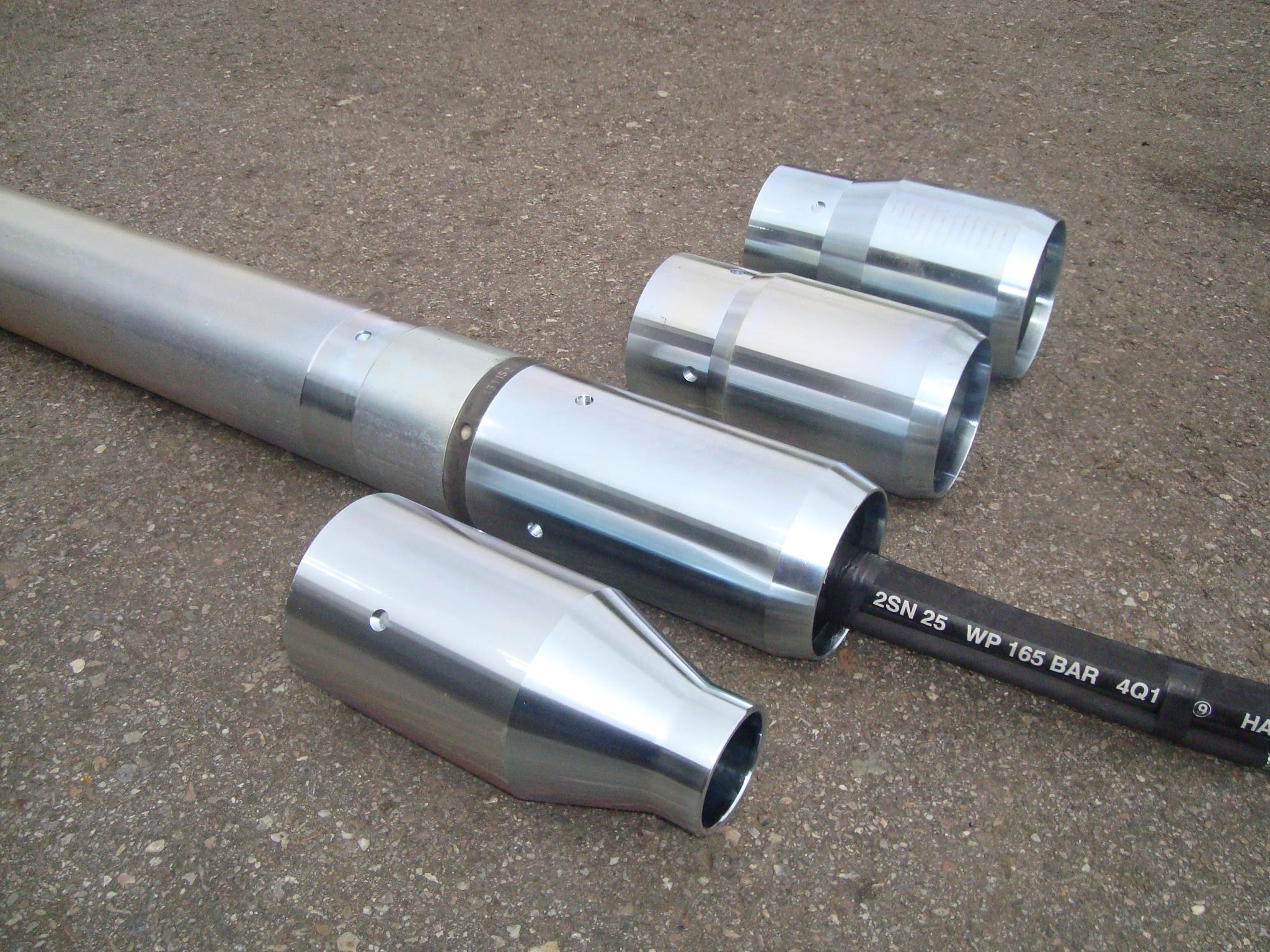

    With the oversized end sleeves pipes of bigger diameters can ba laid underneath the road by just changing the end adapter.
    With expanders pilot bores are expanded to a larger diameter using the same TERRA-HAMMER in a second operation.
      www.boreshop.com/expanders

Expanding accessories
Expanding accessories

Connecting accessories

  1. Air hoses available in different lenght (15 m, 20 m, 25 m)

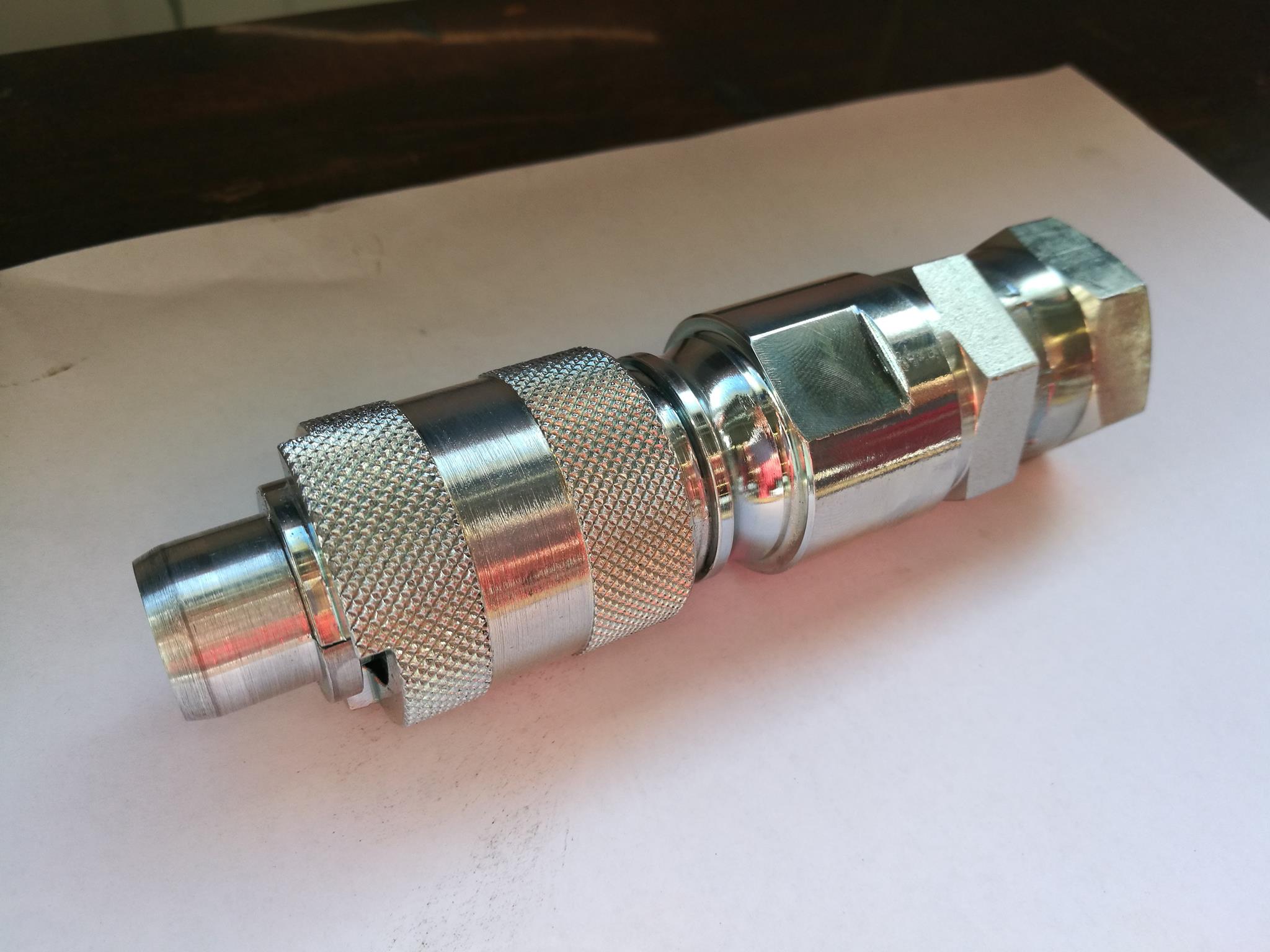

  2. Quick couppling, for quick installation without additional tools.

      www.boreshop.com/quick-connect

Connecting accessories
Connecting accessories

Traceable accessories

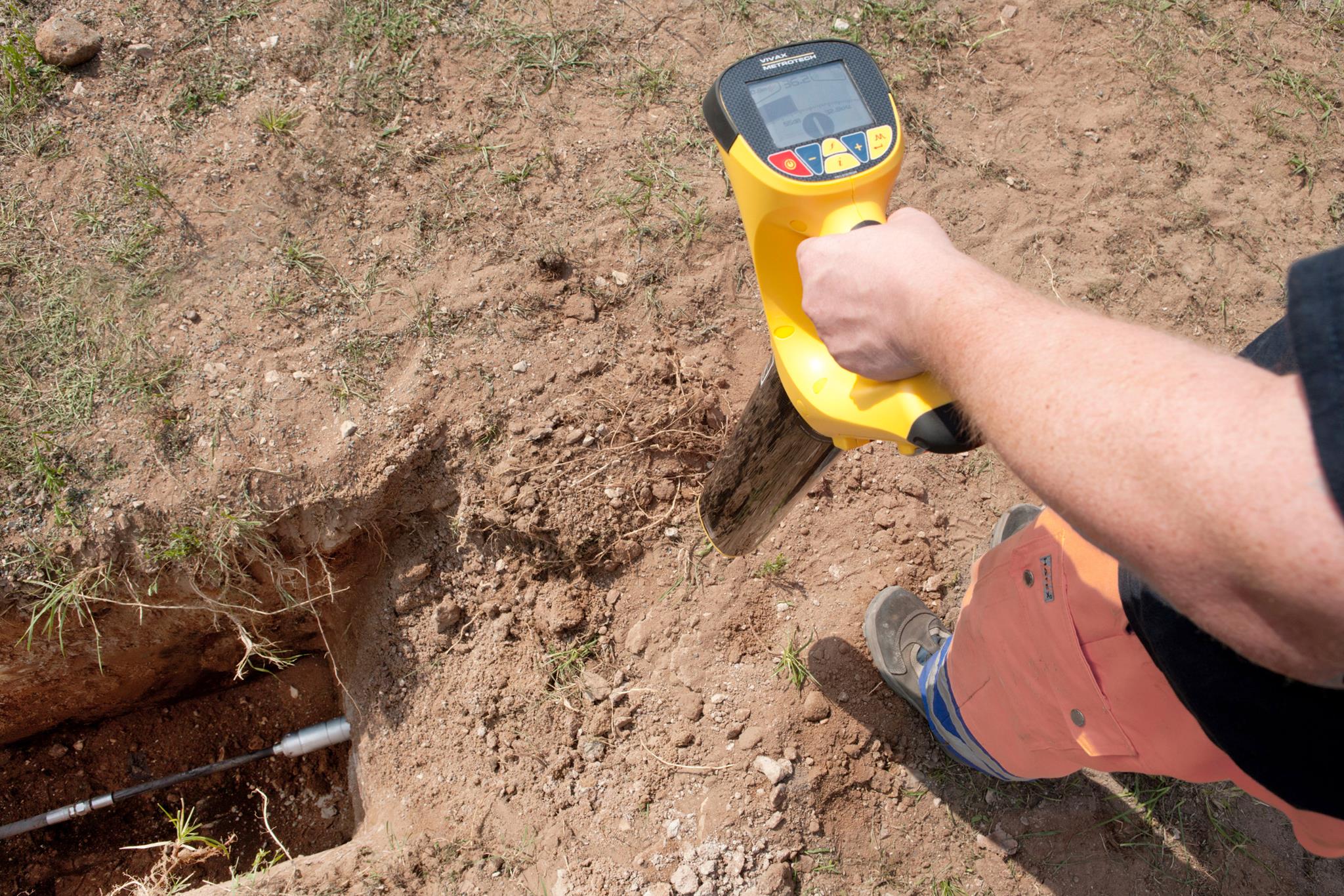

    The locating equipment for the traceable TERRA-HAMMER comprises a sonde contained in the KOK-LD head adapter, used in conjunction with a hand-held radio locator with LCD-display to accurately indicate the position and depth of the tool.

    An additional transmitter allows pipe and cable locating. The TERRA-HAMMER TU 080plus SK and larger machines can be easily equipped with traceable KOK-LD adapters.

      www.boreshop.com/locating

Traceable accessories
Traceable accessories

Ramming accessories

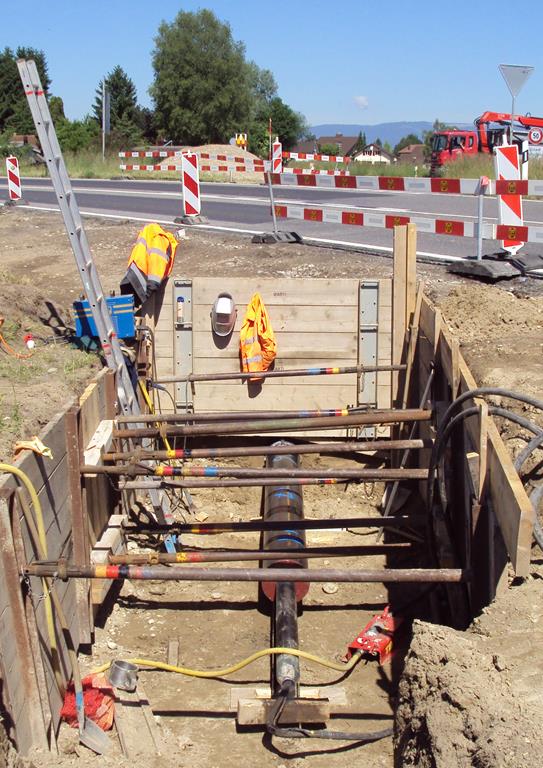

    In addition, the TERRA-HAMMER is used for steel pipe ramming and pipe bursting without any modification. Steel pipes can be rammed over lenghts up to 20 m and diameters up to 300 mm.

Ramming accessories
Ramming accessories

Service accessories

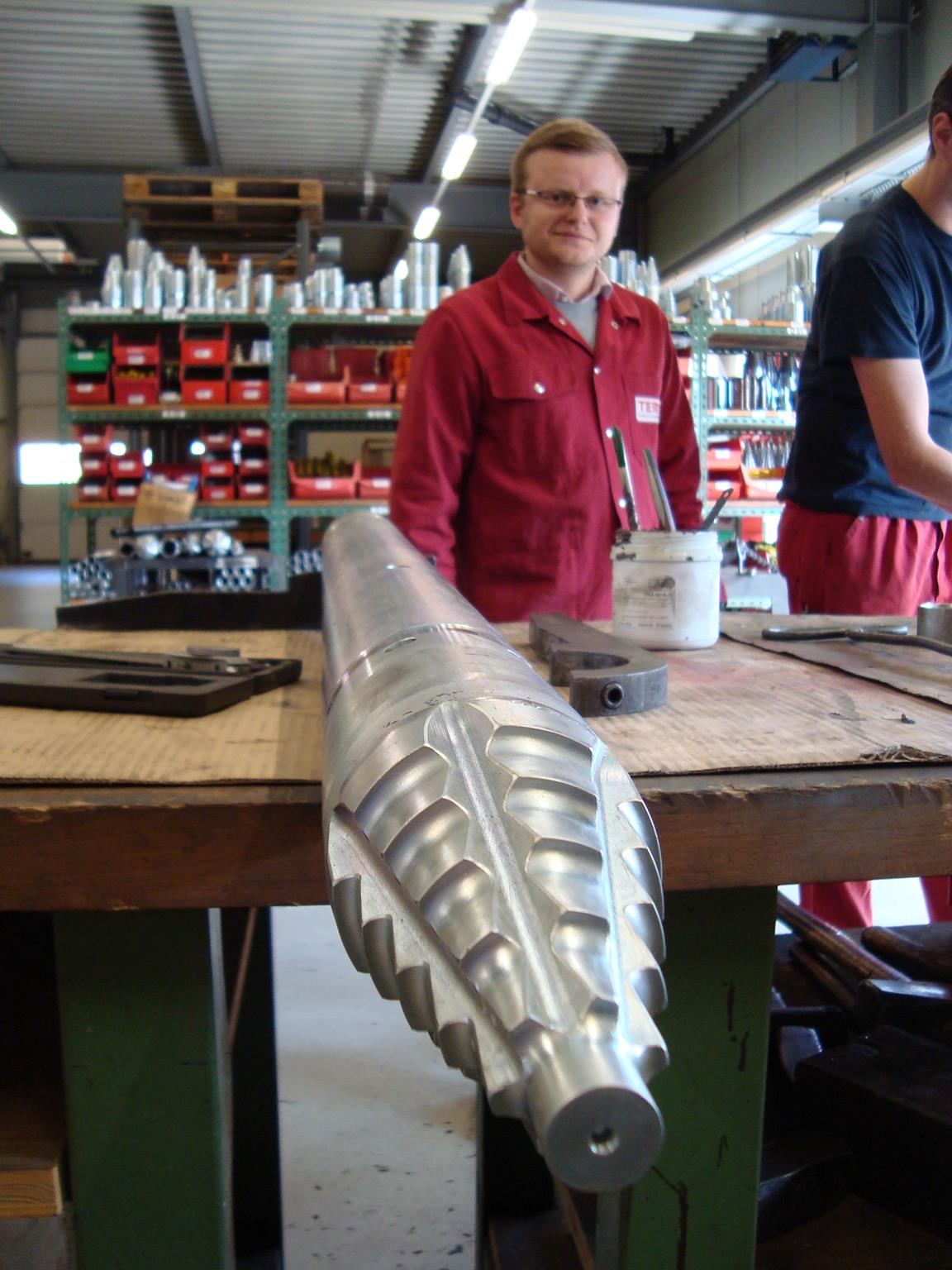

    TERRA offers for each piercing tool diameter its own service kit. The service kit consists of a tool box and a set of wearing parts. Thanks to its simple design, the service goes fast and easy.

Service accessories
Service accessories

Your benefits

Combi head (KOK):

The most intelligent head for piercing tools

Hollow head design:

allows 25 % heavier main pistons

Quick reverse function (Version S):

by a simple 1/4 turn of the air hose

Quick reverse function (Version F):

by remote control - even during operation

3 year warranty:

for all main pistons



  Ask for quotation

  Webshop:   www.boreshop.com

  Technical Data

Applications

The mole - Underground Piercing - soil displacement

Applications Mole / Piercing Tool

mole with expander

Expanders - expandig the bore without modification

traceable mole directly in the head

Traceable mole - traceable directly in the head of the mole

Mole as steel pipe ram without any modification

Use the mole directly as a steel pipe ram
