TERRA-HAMMER TU KOK-LD

Traceable Piercing Tools - Version TU KOK-LD

The first proven front locating system for piercing tools with KOK-LD adapters

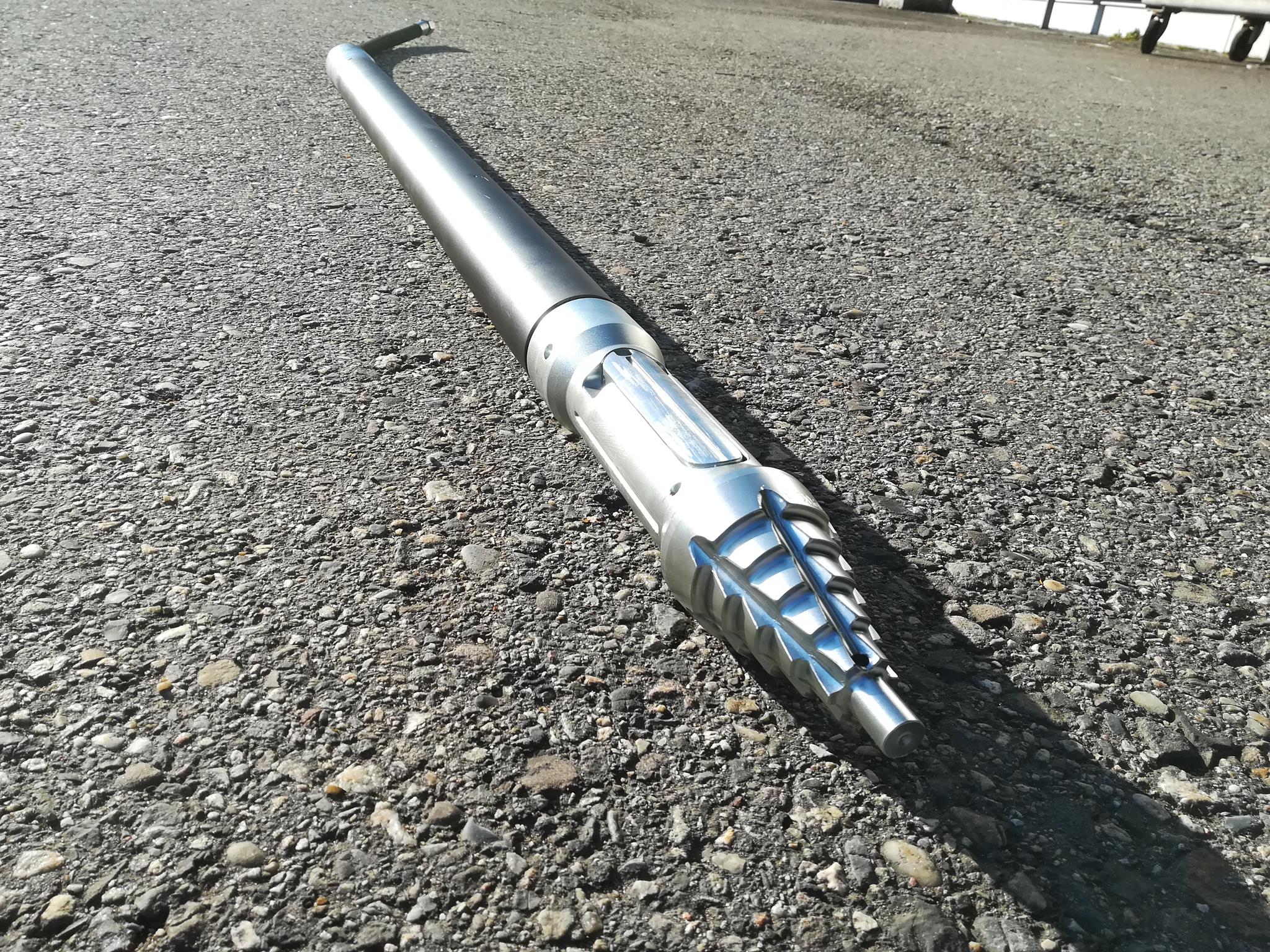

    The traceable head-adapters KOK‐LD for the TU-models carrie an electronic sonde protected by shock absorbers. (LD = long distance)

    This allows precise tracking of the mole's head.

    Need to locate your piercing tool? No problem! With the interchangeable head adapter you can convert your current mole into a traceable mole on the jobsite. Keep track of the bore path!

The first proven front locating system for piercing tools with KOK-LD adapters
The first proven front locating system for piercing tools with KOK-LD adapters


Traceable Head Adapter Accessories

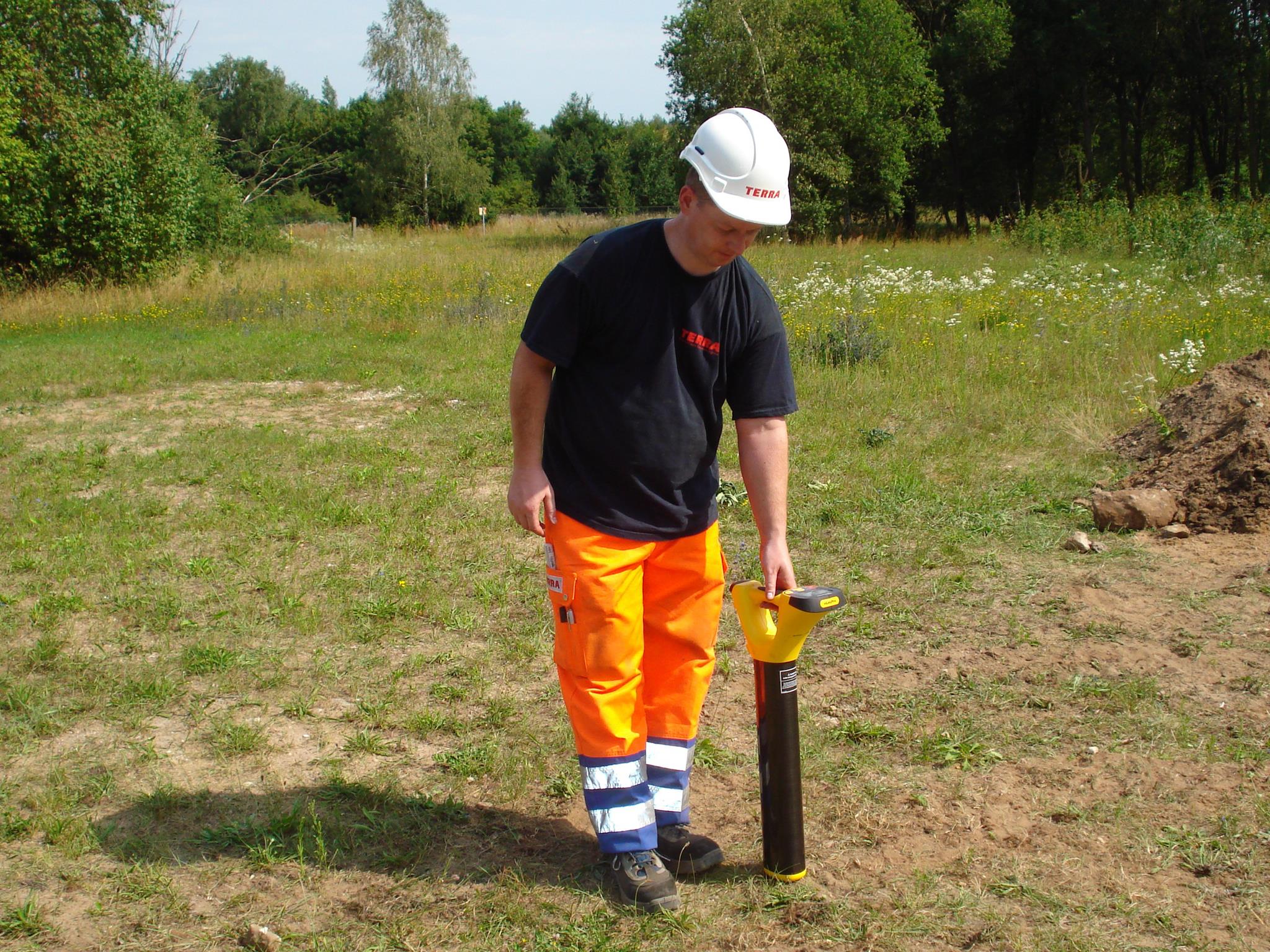

    The locating equipment for the traceable TERRA-HAMMER comprises a sonde contained in the KOK-LD head adapter, used in conjunction with a hand-held radio locator with LCD-display to accurately indicate the position and depth of the tool.

    An additional transmitter allows pipe and cable locating. The TERRA-HAMMER TU 080plus SK and larger machines can be easily equipped with traceable KOK-LD adapters.


Traceable Head Adapter Accessories
Traceable Head Adapter Accessories




Technical Data

TERRA-HAMMER Diameter ø mm Length m Weight kg Frequency 1/min Air consumption m3/min Pressure bar Expanders ø mm

T = TERRA-HAMMER with fused on earth displacement head
TU = TERRA-HAMMER with interchangeable head adapters
TR = TERRA-RAM, for steel pipe ramming and pipe bursting (berstlining)
S = TERRA-HAMMER Version S, with quick reverse (1/4 turn of the air hose)
F = TERRA-HAMMER Version F, with remote control reverse
F2 = TERRA-HAMMER Version F2, with remote control reverse, with integrated control hose
S/F = TERRA-HAMMER, available in Version S and Version F
K = TERRA-HAMMER Version K, not glued, can be serviced without heating
SK = TERRA-HAMMER Version S + Version K
KOK-LD = TERRA-HAMMER with traceable KOK-LD adapter


Technical specifications can be changed without previous notice.
TU 055 SK mit KOK-LD
55
1.25
16
520
0.9
6-7
-
TU 068plus SK mit KOK-LD
68
1.51
33
420
1.3
6-7
85
TU 080plus SK mit KOK-LD
80
1.51
42
395
1.8
6-7
102/133
TU 105 S/F mit KOK-LD
105
1.50
71
360
2.4
6-7
133/170
TU 135 S/F mit KOK-LD
135
1.80
138
350
2.4
6-7
152/203
TU 155 F mit KOK-LD
155
1.94
182
285
3.8
6-7
203/245
TU 190 F mit KOK-LD
190
1.97
284
275
5
6-7
245/300



Technical Data, us

TERRA-HAMMER Diameter ø inch Length inch Weight lbs Frequency b/min Air consumption cfm Pressure psi Expanders ø inch

T = TERRA-HAMMER with fused on earth displacement head
TU = TERRA-HAMMER with interchangeable head adapters
TR = TERRA-RAM, for steel pipe ramming and pipe bursting (berstlining)
S = TERRA-HAMMER Version S, with quick reverse (1/4 turn of the air hose)
F = TERRA-HAMMER Version F, with remote control reverse
F2 = TERRA-HAMMER Version F2, with remote control reverse, with integrated control hose
S/F = TERRA-HAMMER, available in Version S and Version F
K = TERRA-HAMMER Version K, not glued, can be serviced without heating
SK = TERRA-HAMMER Version S + Version K
KOK-LD = TERRA-HAMMER with traceable KOK-LD adapter


Technical specifications can be changed without previous notice.
TU 055 SK mit KOK-LD
2.17"
49.2"
35
520
31
85-100
-
TU 068plus SK mit KOK-LD
2.68"
59.4"
73
420
45
85-100
3.35"
TU 080plus SK mit KOK-LD
3.15"
59.4"
92
395
63
85-100
4" / 5.2"
TU 105 S/F mit KOK-LD
4.13"
59.0"
156
360
84
85-100
5.2" / 6.7"
TU 135 S/F mit KOK-LD
5.31"
70.8"
304
350
84
85-100
6.0" / 8.0"
TU 155 F mit KOK-LD
6.10"
76.4"
401
285
135
85-100
7.48" / 9.6"
TU 190 F mit KOK-LD
7.48"
77.5"
626
275
175
85-100
9.6" / 11.8"


 up
