Piercing Tools (long version)

TERRA Piercing Tools (ø 45 - 210 mm (2" - 8")

The Piercing Tool for every contractor

    The TERRA-HAMMER is used for trenchless underground pipe and cable laying. For bores up to ø 300 mm (12 in) the TERRA-HAMMER displaces the soil sideways, while larger diameters up to 3000 mm (120 in) are achieved by steel pipe ramming. When displacing soil (see pic. above) the pneumatically powered tools force their way through the ground simultaneously installing PVC or PE pipes under driveways, roads and railway lines. The process is fast and economical, minimizing disruption and allows continuation of traffic flows during works.

The Piercing Tool for every contractor
The Piercing Tool for every contractor

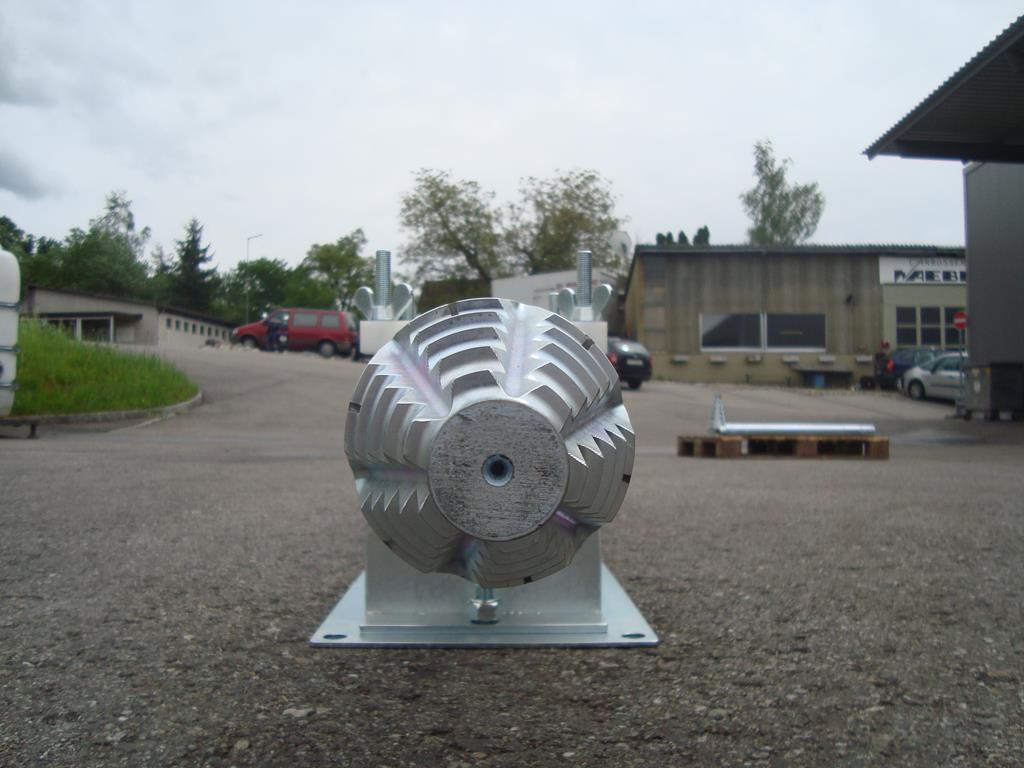

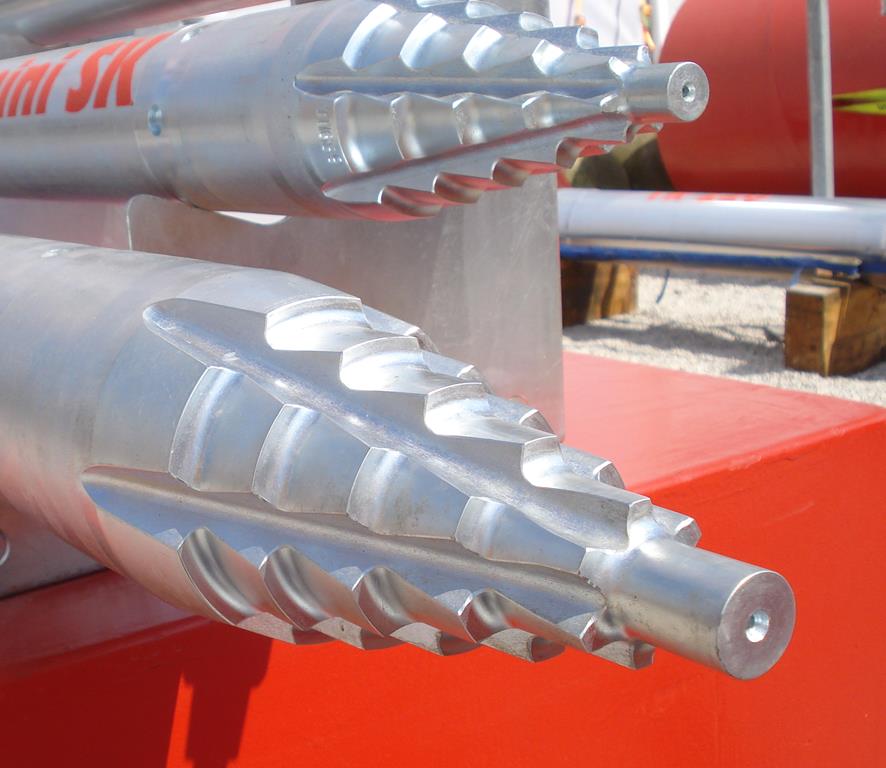

Combi head (KOK)

    Longitudinal grooves displace soil sideways and allow piercing even in hard ground conditions, a feature which makes the combi head (KOK) superior in comparison to any other stepped, conical or crown head tool.

    The cutting and demolition edges destroy all obstructions regardless of whether they hit sideways or head-on. This results in the highest possible accuracy.

    The star chisel makes the combi head (KOK) superior in demolishing obstructions. The star chisel penetrates through every breakable obstacle.

Combi head (KOK)
Combi head (KOK)

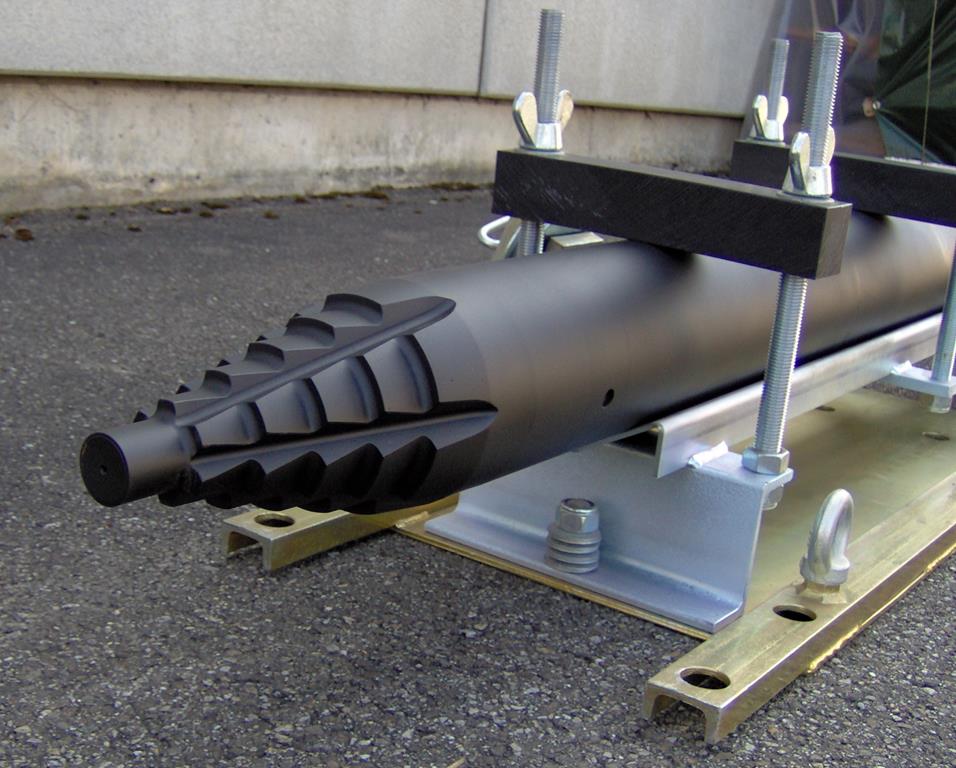

Simple and sturdy design

    ⅓ less parts than competitive piercing tools, at minimum air consumption.
    Aerodynamic inner air flow guarantees easy starting and reversing with lowest recoil.

Simple and sturdy design
Simple and sturdy design

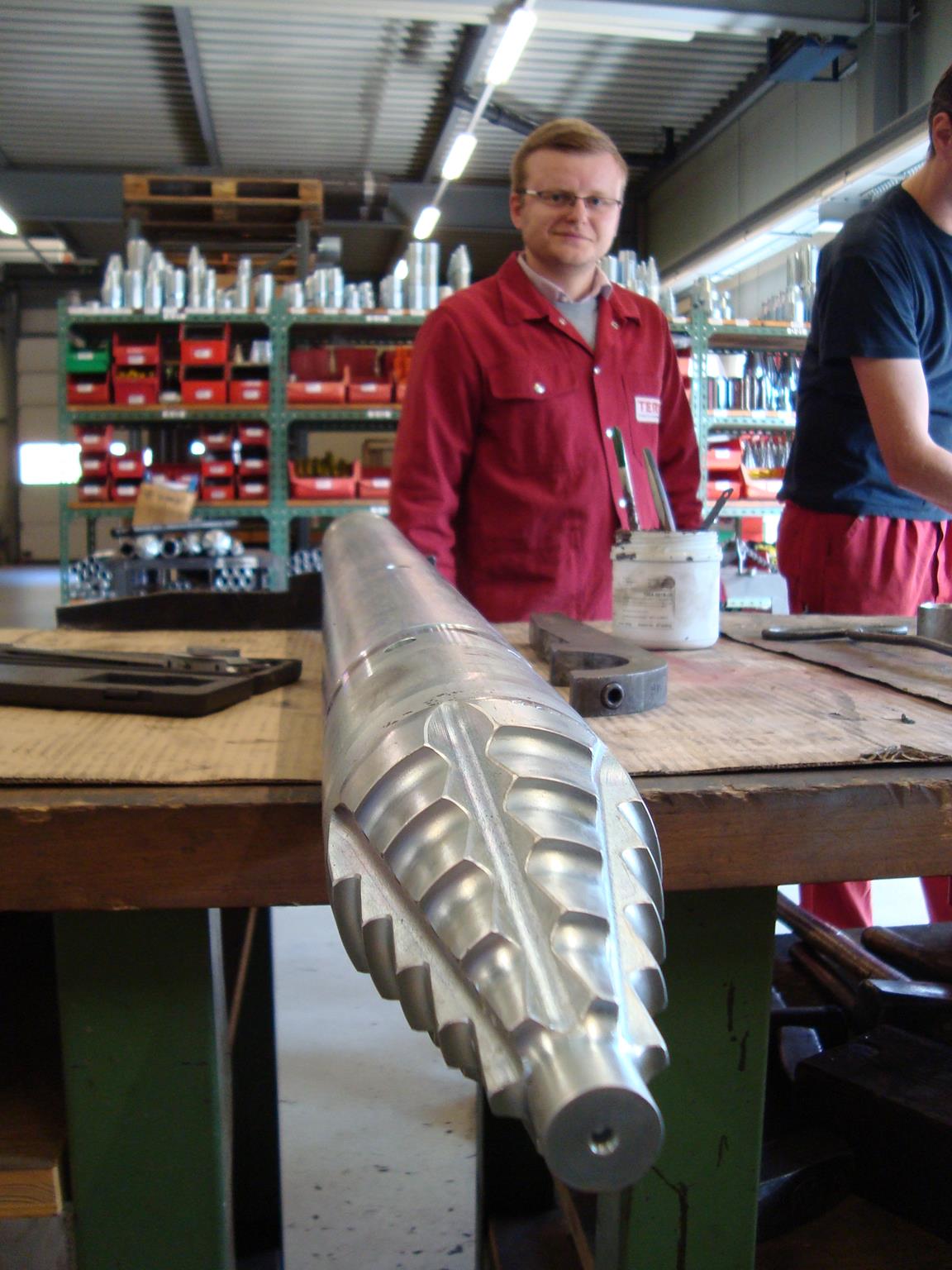

Heavy main piston - high impact

    The main pistons of TERRA are 25 % heavier than comparable main pistons. The exclusive combi head in combination with the heavy main piston guarantees unequalled penetration speed and accuracy. Aerodynamic air flow patterns ensure low air consumption and minimal recoil. The main piston hits inside the head where it is most effective and not behind it. TERRA offers a 3 year warranty on all main pistons. The only company in the world to do so.

Desin of a TERRA underground piercing tool: heavy main piston
Desin of a TERRA underground piercing tool: heavy main piston

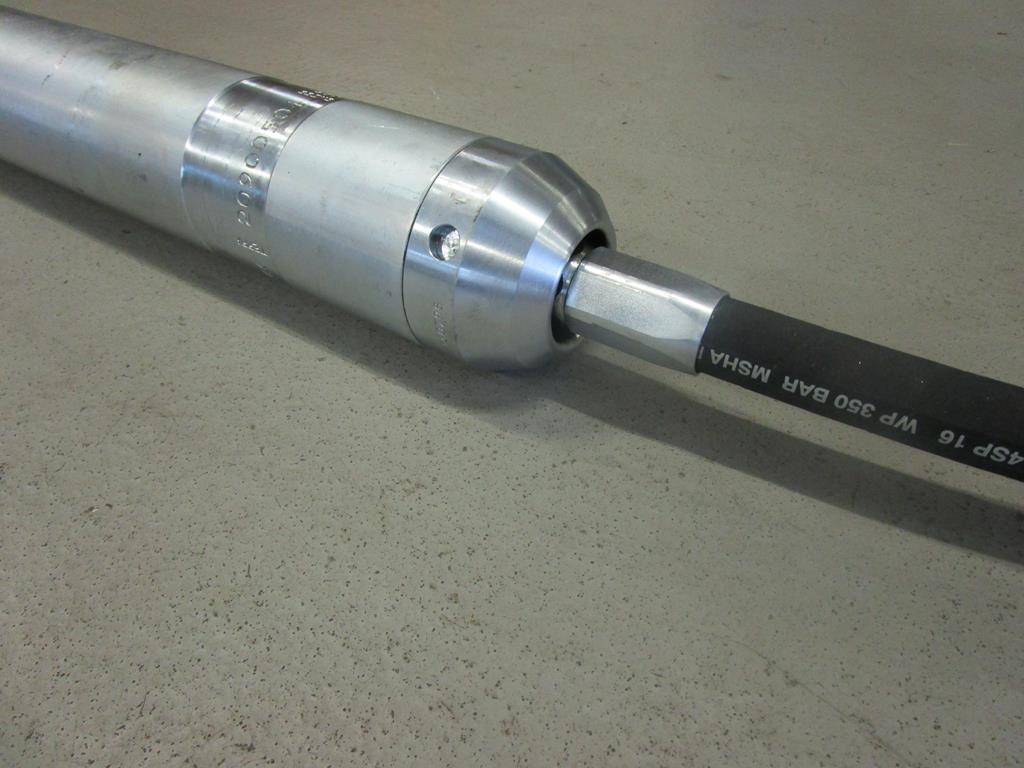

Quick Reverse Function

    A simple ¼ turn of the air hose will reverse the tool. No unintentional reversal of the tool during operation due to pneumatic locking (Version S). Larger tools are equipped with a remote controlled reverse function (Version F). They reverse by simply turning the lever at the oiler.

Quick Reverse Function
Quick Reverse Function

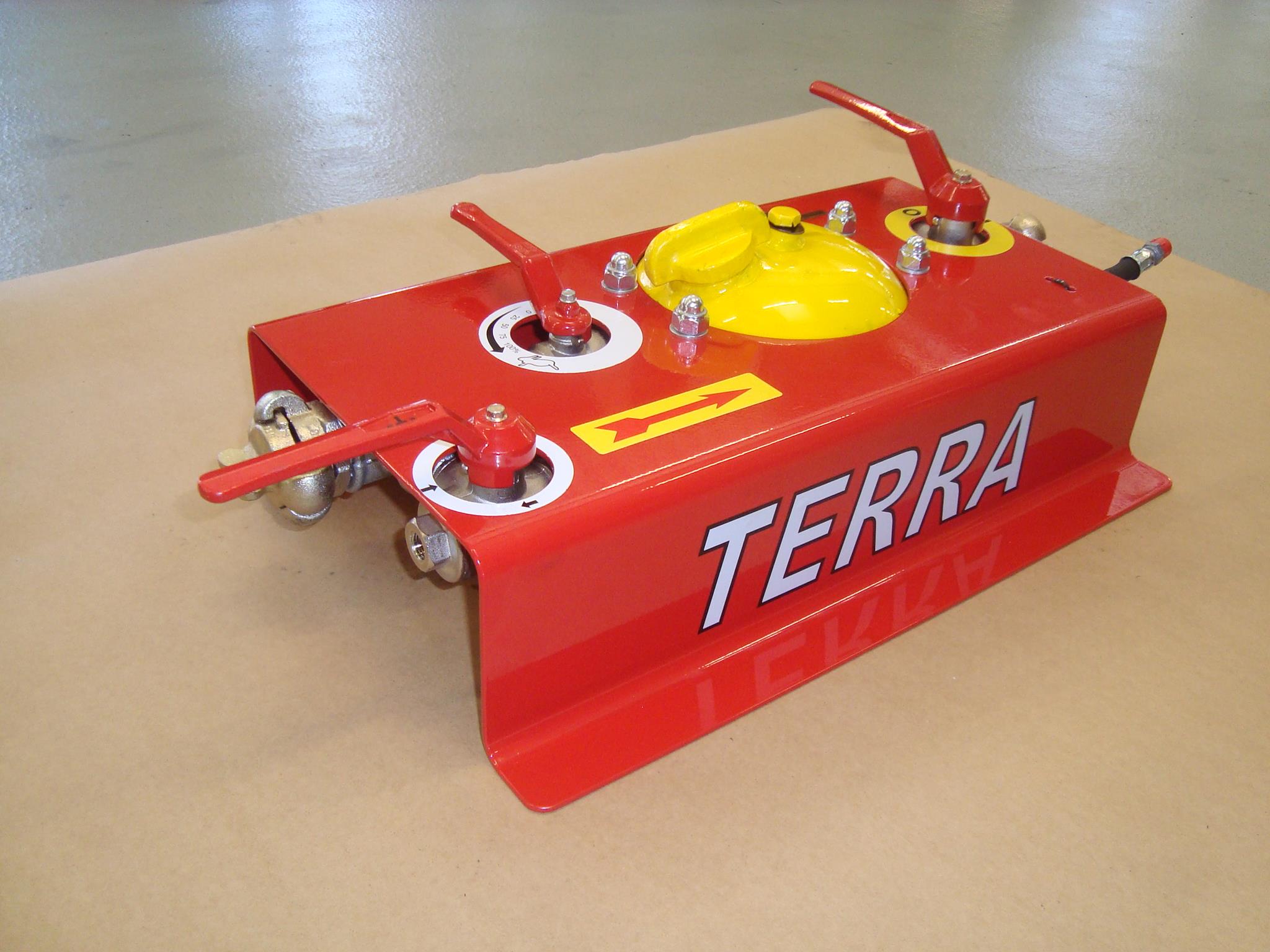

Remote control


Remote control
Remote control



Technical Data

TERRA-HAMMER Diameter ø mm Length m Weight kg Frequency 1/min Consumption m3/min Pressure bar Expanders ø mm

T = TERRA-HAMMER with fused on earth displacement head
TU = TERRA-HAMMER with interchangeable head adapters
TR = TERRA-RAM, for steel pipe ramming and pipe bursting (berstlining)
S = TERRA-HAMMER Version S, with quick reverse (1/4 turn of the air hose)
F = TERRA-HAMMER Version F, with remote control reverse
F2 = TERRA-HAMMER Version F2, with remote control reverse, with integrated control hose
S/F = TERRA-HAMMER, available in Version S and Version F
K = TERRA-HAMMER Version K, not glued, can be serviced without heating
SK = TERRA-HAMMER Version S + Version K
KOK-LD = TERRA-HAMMER with traceable KOK-LD adapter


Technical specifications can be changed without previous notice.
TU 045 R (mini)
45 mm
1.00 m
9 kg
475 /min
0.6 m3/min
6-7 bar
-
TU 055 R (mini)
55 mm
1.05 m
13 kg
520 /min
0.9 m3/min
6-7 bar
-
TU 055 R (ortbar)
55 mm
1.25 m
16 kg
520 /min
0.9 m3/min
6-7 bar
-
TU 068 SK
68 mm
1.31 m
28 kg
420 /min
1.3 m3/min
6-7 bar
85 mm
TU 068 SK (mini)
68 mm
0.98 m
20 kg
480 /min
1.1 m3/min
6-7 bar
-
TU 068 SK (ortbar)
68 mm
1.51 m
33 kg
420 /min
1.3 m3/min
6-7 bar
-
TU 080 SK
80 mm
1.41 m
39 kg
395 /min
1.8 m3/min
6-7 bar
bis 135 mm
TU 080 SK (mini)
80 mm
0.91 m
24 kg
550 /min
1.8 m3/min
6-7 bar
-
TU 080 SK (ortbar)
80 mm
1.51 m
42 kg
395 /min
1.8 m3/min
6-7 bar
-
TU 090 SK
90 mm
1.49 m
51 kg
395 /min
1.8 m3/min
6-7 bar
bis 170 mm
TU 090 SK (mini)
90 mm
0.91 m
38 kg
550 /min
1.8 m3/min
6-7 bar
-
TU 090 SK (ortbar)
90 mm
1.44 m
53 kg
395 /min
1.8 m3/min
6-7 bar
-
T 105 S/F
105 mm
1.40 m
60 kg
360 /min
2.4 m3/min
6-7 bar
bis 200 mm
T 105 S (mini)
105 mm
1.08 m
44 kg
540 /min
2.4 m3/min
6-7 bar
-
TU 105 S/F
105 mm
1.40 m
65 kg
360 /min
2.4 m3/min
6-7 bar
bis 200 mm
TU 105 S/F (ortbar)
105 mm
1.50 m
71 kg
360 /min
2.4 m3/min
6-7 bar
-
T 135 Twin
135 mm
1.70 m
120 kg
350 /min
2.4 m3/min
6-7 bar
bis 275 mm
T 135 Twin (mini)
135 mm
1.15 m
80 kg
520 /min
2.8 m3/min
6-7 bar
-
TU 135 Twin
135 mm
1.70 m
125 kg
350 /min
2.4 m3/min
6-7 bar
bis 275 mm
TU 135 Twin (ortbar)
135 mm
1.80 m
138 kg
350 /min
2.4 m3/min
6-7 bar
-
T 155 F
155 mm
1.84 m
170 kg
285 /min
3.8 m3/min
6-7 bar
bis 245 mm
TU 155 F
155 mm
1.85 m
172 kg
285 /min
3.8 m3/min
6-7 bar
bis 245 mm
TU 155 F (ortbar)
155 mm
1.94 m
182 kg
285 /min
3.8 m3/min
6-7 bar
-
T 190 F
190 mm
1.89 m
258 kg
275 /min
5.0 m3/min
6-7 bar
bis 300 mm
TU 190 F
190 mm
1.90 m
260 kg
275 /min
5.0 m3/min
6-7 bar
bis 300 mm
TU 190 F (ortbar)
190 mm
1.97 m
284 kg
275 /min
5.0 m3/min
6-7 bar
-
T 210 F
210 mm
1.90 m
317 kg
275 /min
5.0 m3/min
6-7 bar
-
TU 210 F
210 mm
191 m
319 kg
275 /min
5.0 m3/min
6-7 bar
-
TU 210 F (ortbar)
210 mm
1.98 m
343 kg
275 /min
5.0 m3/min
6-7 bar
-
TR 200mini
200 mm
0.90 m
112 kg
550 /min
4.0 m3/min
6-7 bar
-
TR 220
220 mm
1.60 m
315 kg
320 /min
7.0 m3/min
6-7 bar
-
TR 360
360 mm
1.75 m
663 kg
280 /min
12 m3/min
6-7 bar
-
TR 565
565 mm
2.30 m
2'535 kg
195 /min
34 m3/min
6-7 bar
-


Technical Data, us

TERRA-HAMMER Diameter ø inch Length inch Weight lbs Frequency b/min Consumption cfm Pressure psi Expanders ø inch

T = TERRA-HAMMER with fused on earth displacement head
TU = TERRA-HAMMER with interchangeable head adapters
TR = TERRA-RAM, for steel pipe ramming and pipe bursting (berstlining)
S = TERRA-HAMMER Version S, with quick reverse (1/4 turn of the air hose)
F = TERRA-HAMMER Version F, with remote control reverse
F2 = TERRA-HAMMER Version F2, with remote control reverse, with integrated control hose
S/F = TERRA-HAMMER, available in Version S and Version F
K = TERRA-HAMMER Version K, not glued, can be serviced without heating
SK = TERRA-HAMMER Version S + Version K
KOK-LD = TERRA-HAMMER with traceable KOK-LD adapter


Technical specifications can be changed without previous notice.
TU 045 R (short version)
1.8"
39"
20 lbs
475 /min
21 cfm
100 psi
-
TU 055 R (short version)
2.2"
41"
29 lbs
520 /min
31 cfm
100 psi
-
TU 055 R (traceable)
2.2"
49"
35 lbs
520 /min
31 cfm
100 psi
-
TU 068 SK
2.7"
52"
62 lbs
420 /min
45 cfm
100 psi
3.5"
TU 068 SK (short version)
2.7"
39"
44 lbs
480 /min
38 cfm
100 psi
-
TU 068 SK (traceable)
2.7"
60"
73 lbs
420 /min
45 cfm
100 psi
-
TU 080 SK
3.2"
56"
86 lbs
395 /min
63 cfm
100 psi
up to 5.5"
TU 080 SK (short version)
3.2"
35"
53 lbs
550 /min
63 cfm
100 psi
-
TU 080 SK (traceable)
3.2"
60"
92 lbs
395 /min
63 cfm
100 psi
-
TU 090 SK
3.5"
59"
112 lbs
395 /min
63 cfm
100 psi
up to 7"
TU 090 SK (short version)
3.5"
35"
83 lbs
550 /min
63 cfm
100 psi
-
TU 090 SK (traceable)
3.5"
57"
116 lbs
395 /min
63 cfm
100 psi
-
T 105 S/F
4.1"
55"
132 lbs
360 /min
84 cfm
100 psi
up to 7.5"
T 105 S (short version)
4.1"
43"
97 lbs
540 /min
84 cfm
100 psi
-
TU 105 S/F
4.1"
55"
143 lbs
360 /min
84 cfm
100 psi
up to 7.5"
TU 105 S/F (traceable)
4.1"
59"
156 lbs
360 /min
84 cfm
100 psi
-
T 135 Twin
5.3"
67"
264 lbs
350 /min
84 cfm
100 psi
up to 11"
T 135 Twin (short version)
5.3"
45"
176 lbs
520 /min
100 cfm
100 psi
-
TU 135 Twin
5.3"
67"
275 lbs
350 /min
84 cfm
100 psi
up to 11"
TU 135 Twin (traceable)
5.3"
71"
304 lbs
350 /min
84 cfm
100 psi
-
T 155 F
6.1"
55"
370 lbs
285 /min
135 cfm
100 psi
up to 9.5"
TU 155 F
6.1"
73"
379 lbs
285 /min
135 cfm
100 psi
up to 9.5"
TU 155 F (traceable)
6.1"
76"
401 lbs
285 /min
135 cfm
100 psi
-
T 190 F
7.5"
74"
564 lbs
275 /min
175 cfm
100 psi
up to 12"
TU 190 F
7.5"
75"
573 lbs
275 /min
175 cfm
100 psi
up to 12"
TU 190 F (traceable)
7.5"
78"
626 kg
275 /min
175 cfm
100 psi
-
T 210 F
8.3"
75"
704 lbs
275 /min
175 cfm
100 psi
-
TU 210 F
8.3"
75"
709 lbs
275 /min
175 cfm
100 psi
-
TU 210 F (traceable)
8.3"
78"
762 lbs
275 /min
175 cfm
100 psi
-
TR 200mini
7.9"
35"
247 lbs
550 /min
140 cfm
100 psi
-
TR 220
8.7"
63"
694 lbs
320 /min
245 cfm
100 psi
-
TR 360
14"
68"
1,460 lbs
280 /min
420 cfm
100 psi
-
TR 565
26"
91"
5,588 lbs
195 /min
1,190 cfm
100 psi
-

Your benefits

Combi head (KOK):

The most intelligent head for piercing tools

Hollow head design:

allows 25 % heavier main pistons

Quick reverse function (Version S):

by a simple 1/4 turn of the air hose

Quick reverse function (Version F):

by remote control - even during operation

3 year warranty:

for all main pistons

Easy steel pipe ramming:

Each mole can ram steel pipes

More Advantages : expanders for larger diameters




  Ask for quotation

  Webshop:   www.boreshop.com
