TERRA-PIT DJ 18

HDD class: 8 - 10 tons, pit launch machine

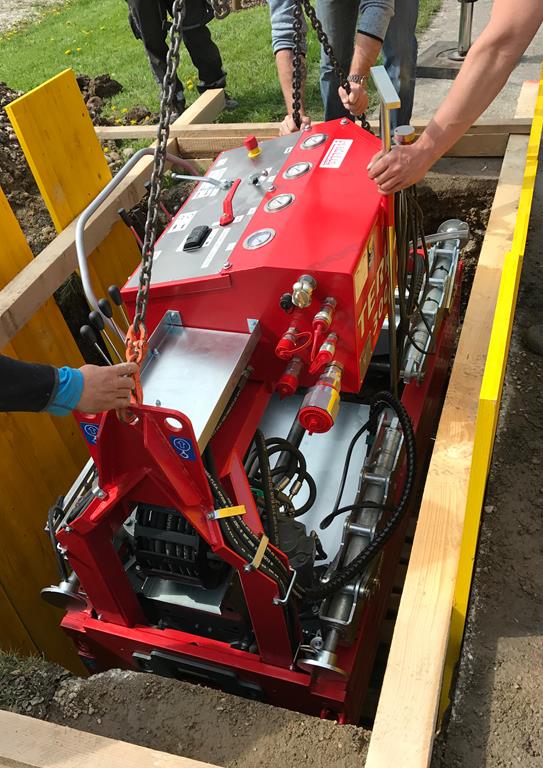

Pit launch drilling with the DJ 18 PIT

    The TERRA-PIT DJ 18 is the most powerful and productive HDD pit launch machine that is available on the world market. Powered by a proven 75 HP HATZ Diesel engine the DJ 18 PIT offers up to 8 tons of thrust and pullback force and 3.000 Nm of torque. With its 95 ltr/min of drilling volume and a maximum drilling pressure of 70 bar you can backream up to 420 mm over lengths of 150 (depending on ground conditions).

    The TERRA-PIT DJ 18 can be pit or surface launched. This HDD system has a modular design. Its main components are the pit frame, the hydraulic power pack and the mixing+pumping station.

    With its 2 separated hydraulic circuits for thrust and rotation, the DJ 18 PIT can operate simultaneously at maximum torque and maximum thrust or pullback force. The hydro-chain-drive has the highest efficiency rate, low wear and is dirt resistant. Due to the movable break-apart-system.

Pit launch drilling with the DJ 18 PIT
Pit launch drilling with the DJ 18 PIT

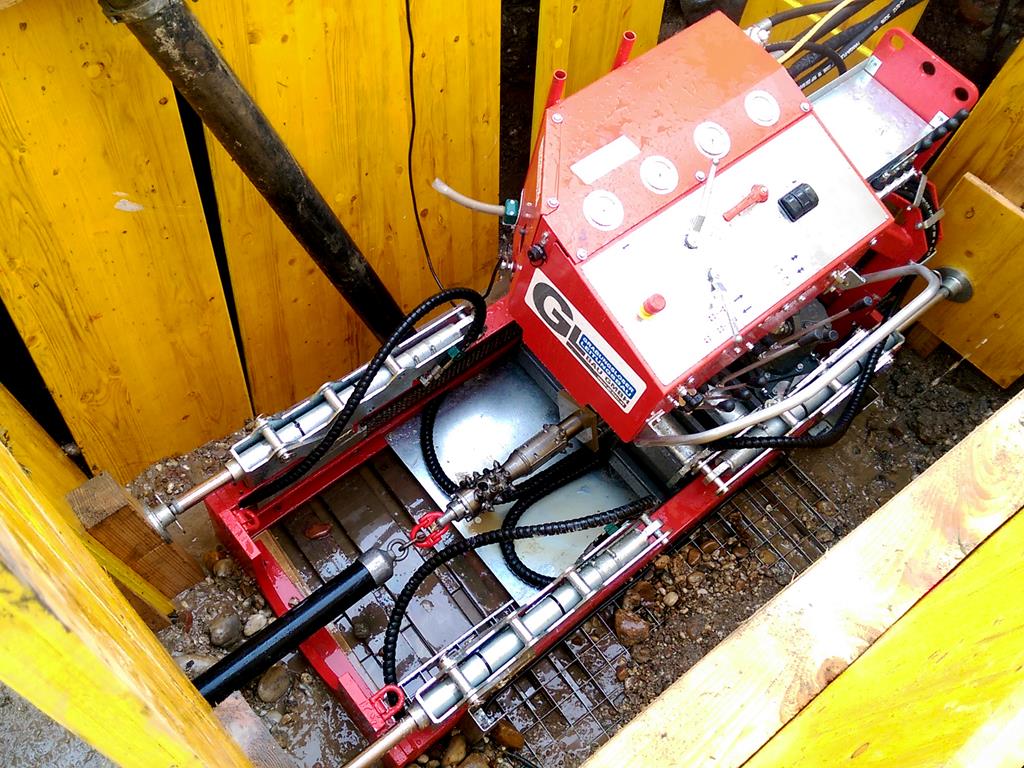

Available as a short and long version

    The machine is available as a short version (L=2.0 m) and a long version (L=2.5 m). With a width of only 0.9 m it fits perfectly in any compact pit. The small footprint and the reduced noise level at the operator’s ear make the TERRA-PIT DJ 18L user friendly and sustainable. The fast set up time and the increased movability helps you to operate your machine also in urban area. The machine can be equipped with an optional rubber crawler.

Available as a short and long version
Available as a short and long version

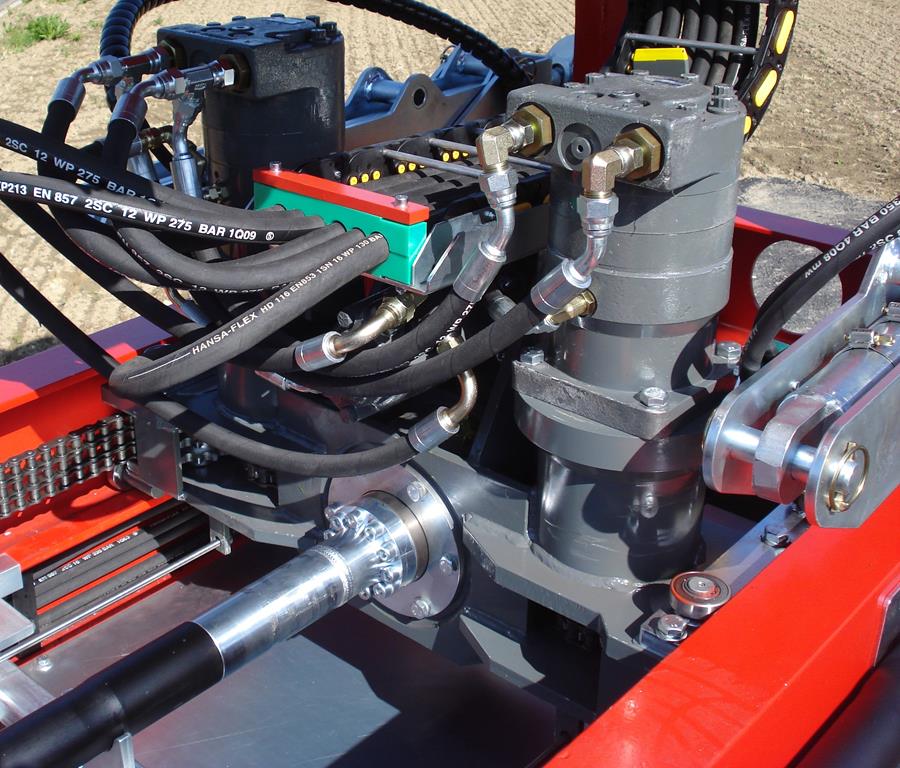

Hydro chain drive

    Thrust and pullback of the driving saddle is done by a hydro-chain-drive. The two static chains are mounted on the launching cradle. The two engines move along the chain. This is powerful and sustainable. The hydro-chain-drive operates in both directions with 8 tons. Highest efficiency can be reached.

Hydro chain drive
Hydro chain drive

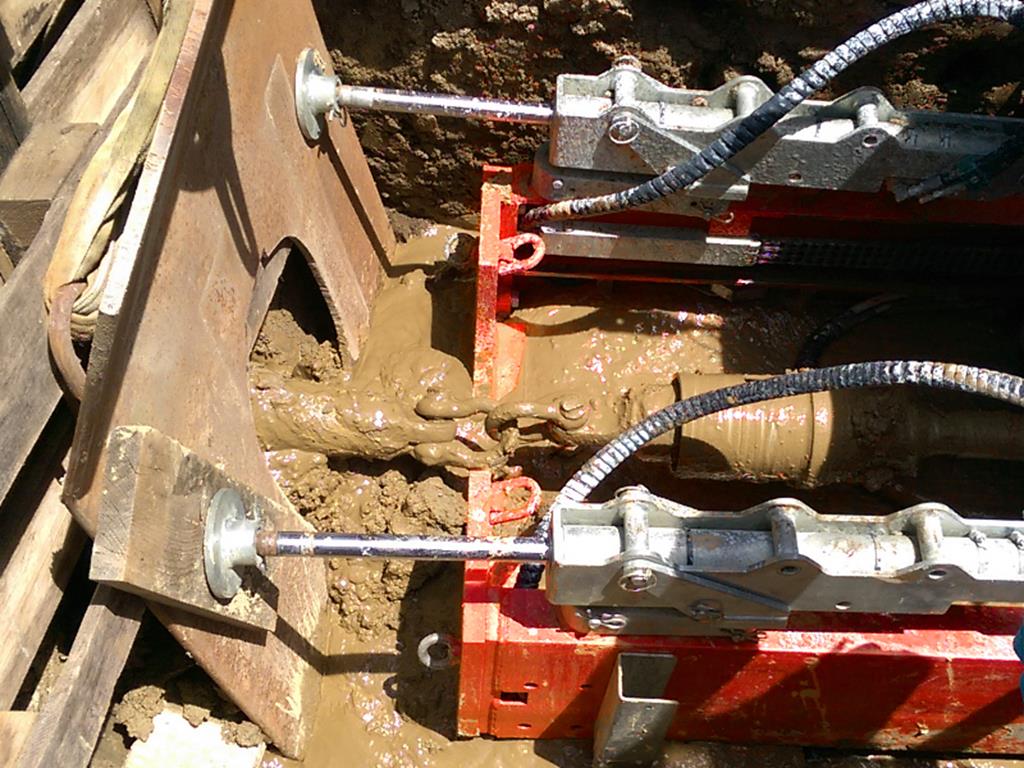

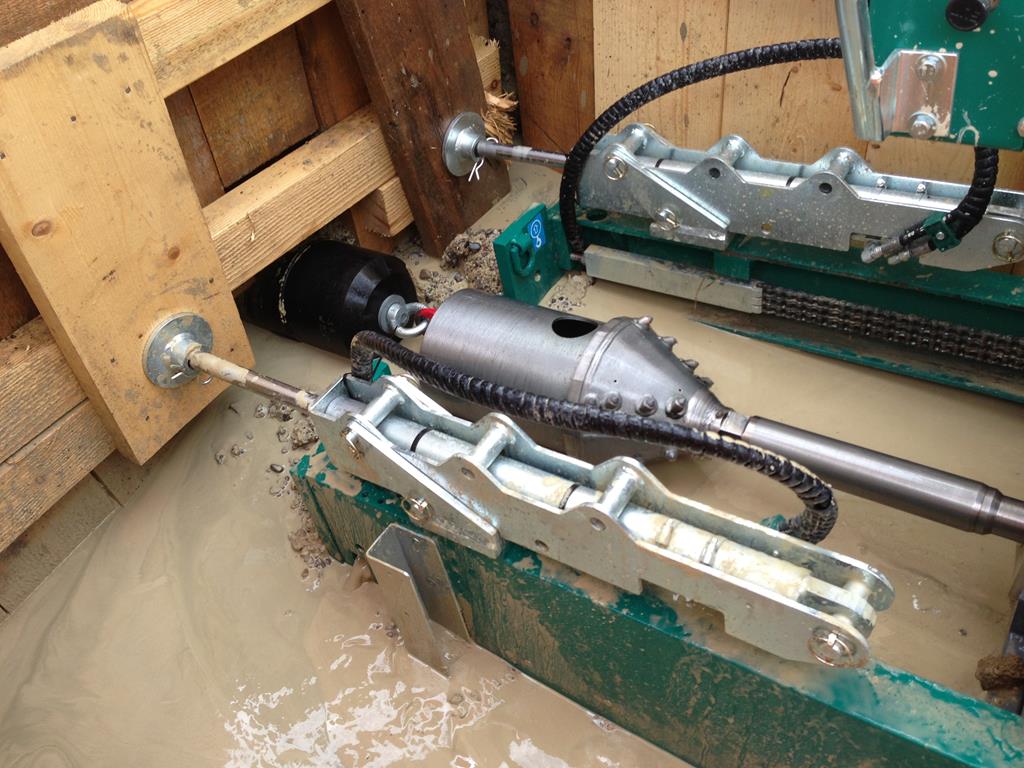

Pulling of the pipe right into the pit

    The break‐apart-system can be moved backwards. Now the backreamer and the new pipe can be pulled into the working pit. All tools can be disassembled in the machine.

Pulling of the pipe right into the pit
Pulling of the pipe right into the pit

Positioning of the machine

    The 4 hydraulic cylinders position the TERRA‐PIT DJ 18 in the working pit and adjust its inclination during surface launch. They can be adjusted to the front and rear, sidewise or downwards.

Positioning of the machine
Positioning of the machine

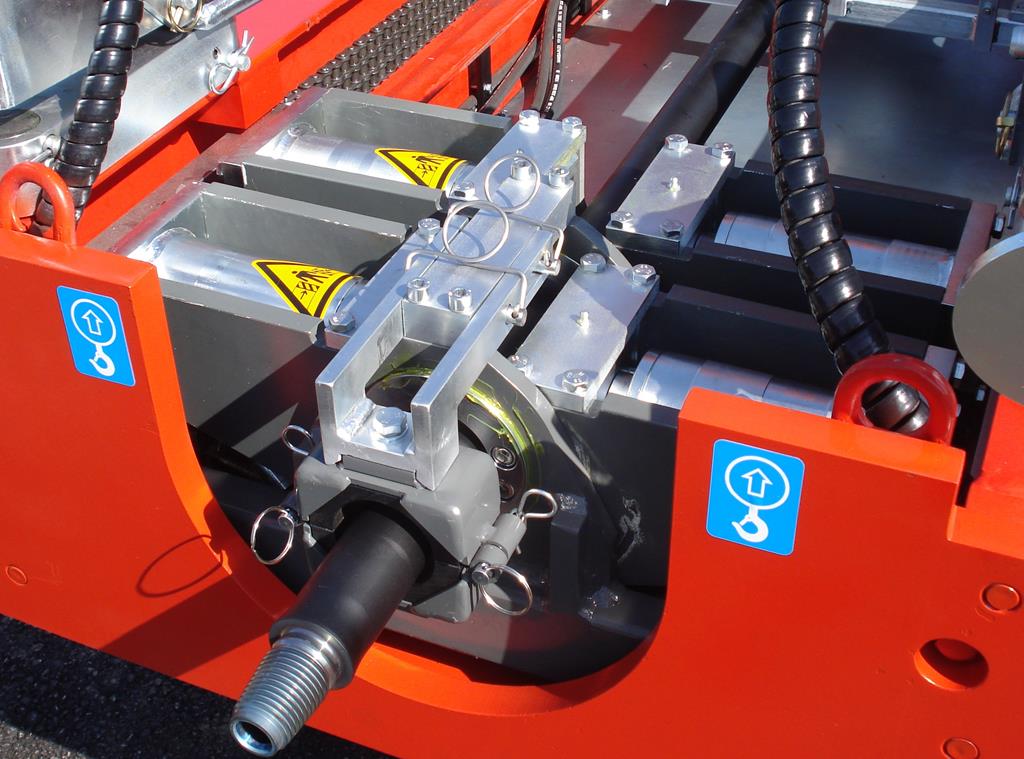

Hydraulic break apart system

    The break‐apart‐system unscrews drill rods hydraulically. The clamping force is 11 tons, the break‐apart torque is 5.200 Nm.

Hydraulic break apart system
Hydraulic break apart system

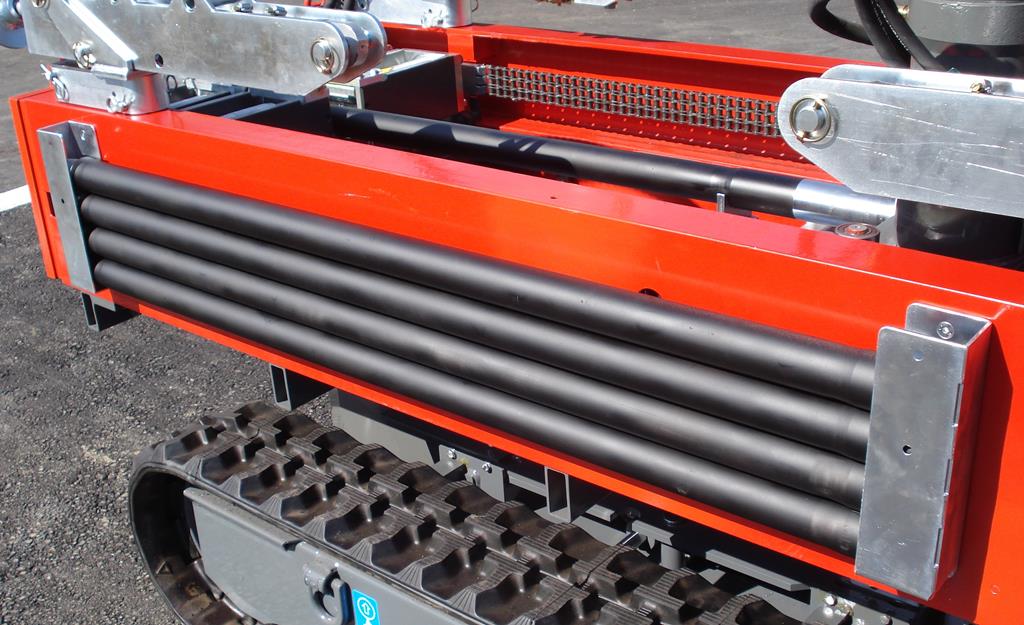

Storage of the drill rods

    At the machine 5 drill rods can be stored. The drill rods are made out of high quality steel. They have a bending radius of 24 m.

Storage of the drill rods
Storage of the drill rods

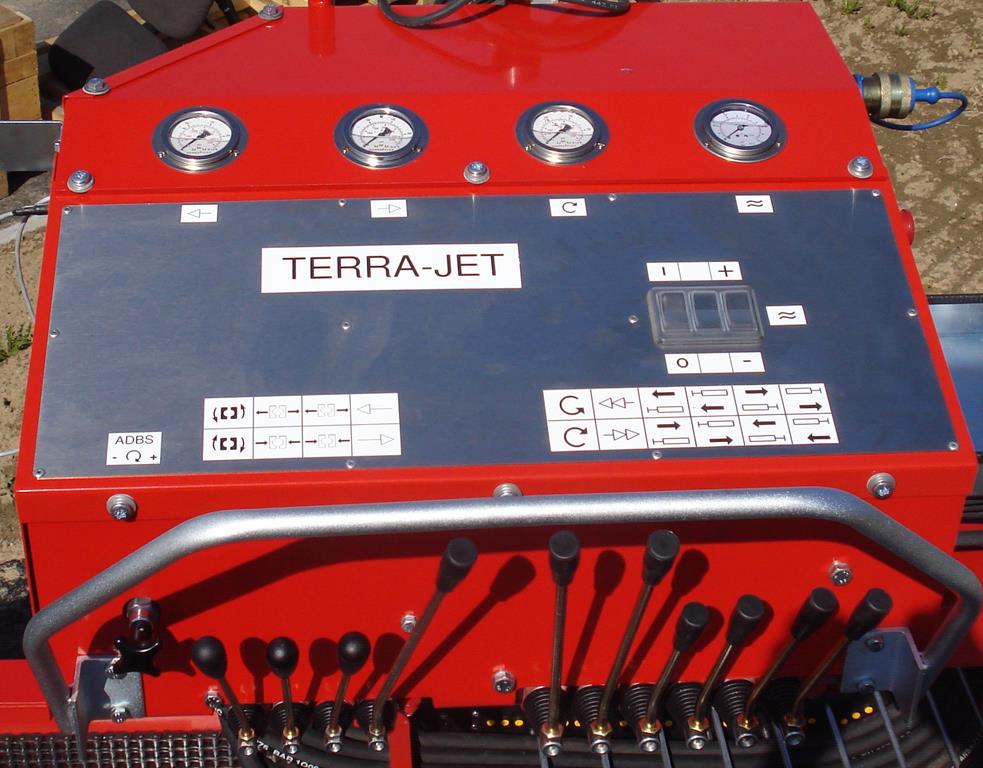

Clear control panel

    All components of the TERRA-PIT are clearly arranged. The integrated electrical control of the the drilling volume takes place by the control panel. For the locating monitor there is a 12 voltage connection. The launching cradle is equipped with a grounding stake and an electrical strike alarm.

Clear control panel
Clear control panel

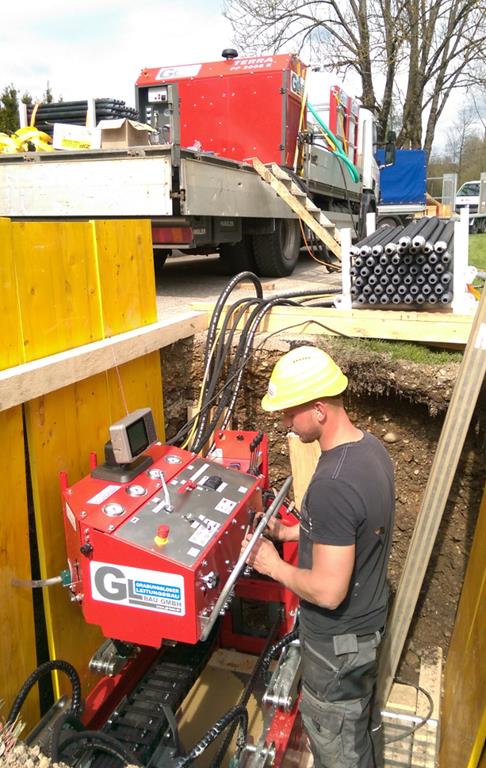

ADBS

    The TERRA-PIT DJ 18 is equipped with a second generation Automatic Drilling and Backreaming System (ADBS).

    This patented system automatically and within milliseconds adjusts the working speed of the drill to suite the ground conditions. In soft ground the drill operates at maximum speed, in hard ground slowly, but always at the optimum speed.

    This allows the operator to operate the drill at maximum efficiency in a controlled and relaxed manner and prevents the drill rods and drilling tools from being overloaded. During the pilot bore the ADBS controls the thrust force. If the drill head hits an unexpected obstacle, the ADBS stops the drilling speed immediately and drills very slowly through the obstacle. All automatically!

ADBS
ADBS

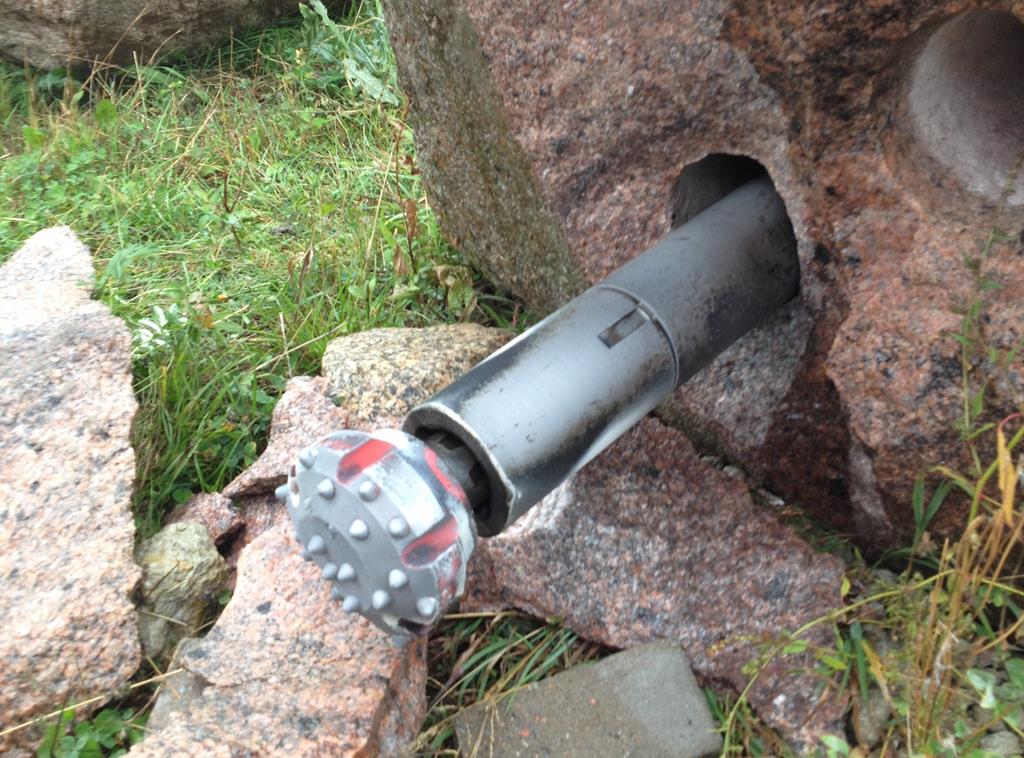

Fluid Rock Drilling

    The DJ 18 PIT can be equipped with a fluid rock drilling hammer. With this hammer even rock drilling or drilling in mixed ground conditions is no problem. The control panel has an optional integrated connection for the air compressor.

Fluid Rock Drilling
Fluid Rock Drilling

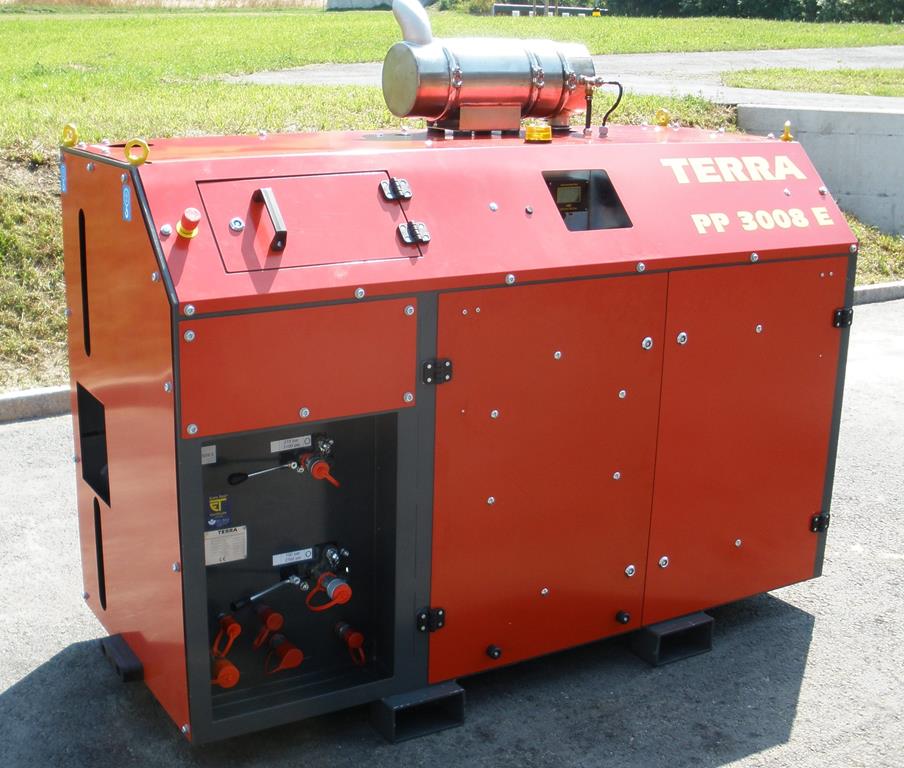

75 HP strong Hatz Diesel engine

    The DJ 18 is equipped with a 75 HP strong HATZ Diesel engine. The engine speed can be adjusted between low and full speed. With two independent hydraulic circuits for thrust and rotation the operator can work with maximum pulling force and maximum spindle torque at the same time. The Power Pack can be lifted with a forklift or at the four yellow lifting eyes.

75 HP strong Hatz Diesel engine
75 HP strong Hatz Diesel engine



Technical Data

Technical Data

*   Depending on ground conditions
** Depending on drill rod size
Technical specifications can be changed without previous notice.
pullback force
8 t (80 kN)
17'600 ft.lbs (9 US tons)
thrust force
8 t (80 kN)
17'600 ft.lbs (9 US tons)
driving power
55 kW (75 PS)
55 kW (75 HP)
Torque
3'000 Nm
1'920 ft.lbs
drill rod rotation speed, 1st speed
135 U/min @ 2000 Nm
135 rpm
drill rod rotation speed, 2nd speed
90 U/min @ 3000 Nm
90 rpm
Drilling fluid volume, max.
95 l/min
26 gpm
Drilling fluid pressure, max.
70 bar
1000 psi
drilling speed - quick gear
17.5 m/min
53 ft/min
drilling speed - at full load
8 m/min
20 ft/min
pilot bore diameter
ø 100 mm
ø 4"
maximum backream diameter*
ø 420 mm
ø 16.5"
maximum drilling length *
150 m
500 ft
drill rods, length
1.0 m
3.3 ft
drill rods, diameter
ø 57/54 mm
ø 2.3" / 2.1"
minimum turning radius**
24 m
80 ft
Dimensions pit cradle LxWxH
2.0 x 0.90 x 1.25 m
6.6 x 3.0 x 4.1 ft
dimensions hydraulic power pack LxWxH
1.95 x 0.94 x 1.70 m
6.5 x 3.1 x 5.78 ft
dimensions Mixing and Pumping Station LxWxH
1.45 x 0.75 x 1.0 m
4.8 x 2.5 x 3.3 ft
weight of the pit cradle
1'300 kg
2'860 lbs
weight of hydraulic power pack
1030 kg
2260 lbs
weight of Mixing and Pumping Station
205 kg
451 lbs

Your benefits

Power and speed:

Most powerful HDD pit launched machine in it's class

ADBSe:

Automatic electronic drilling and backreaming system

Moveable break-apart-system:

new pipe comes directly into the pit

Strong hydro-chain-drive:

for thrust and pullback - the chain doesn't move

Rock Drilling All Terrain:

Roller cutter or PDC chissel available
