TERRA MINI-JET MJ 1600

HDD class: 4 - 6 tons, pit launch machine

		TERRA MINI-JET MJ 1600, Spülbohranlage für die Grube

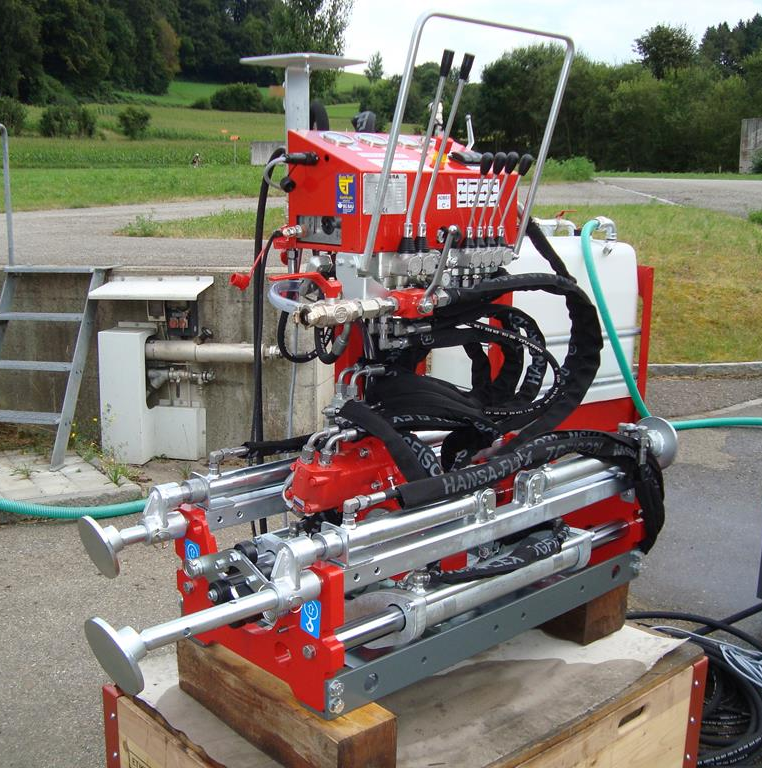

Pit launched machine TERRA MINI-JET MJ 1600 - Strong and compact design

    The compact HDD system TERRA MINI-JET MJ 1600 is one of the most powerful and most productive compact HDD systems, which is available worldwide. Powered by a proven 33 HP strong KUBOTA Diesel engine the MJ 1600 offers up to 6 tons of thrust and pullback force, 1.600 Nm of torque and a maximum spindle speed of 125 rpm. With its 52 ltr/min high pressure pump you can drill up to 50 m and backream up to 300 mm (depending on ground).

Pit launched machine TERRA MINI-JET MJ 1600 - Strong and compact design
Pit launched machine TERRA MINI-JET MJ 1600 - Strong and compact design

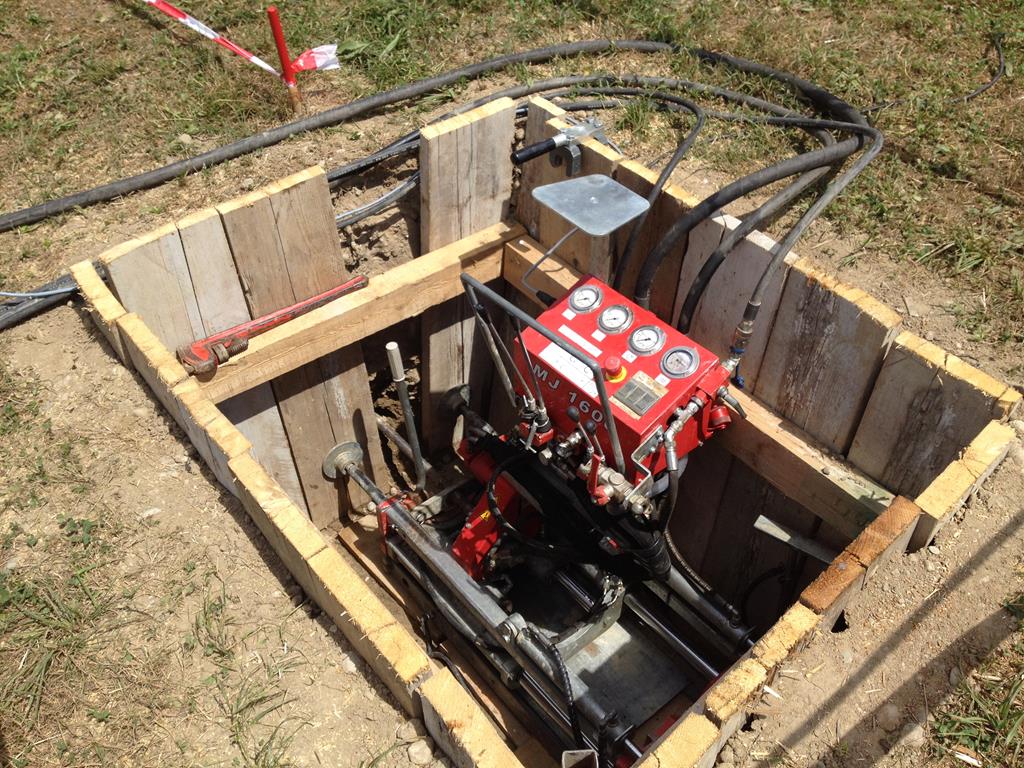

Compact design

    Due to its compact design the MJ 1600 can work out of a pit with dimensions of only 1.3 m x 1.3 m. The small footprint and the reduced noise level at the operator’s ear make the TERRA MINI-JET MJ 1600 user friendly and sustainable. The fast set up time and the increased movability helps you to operate your machine also in urban areas or family‘s backyard.

Compact design
Compact design

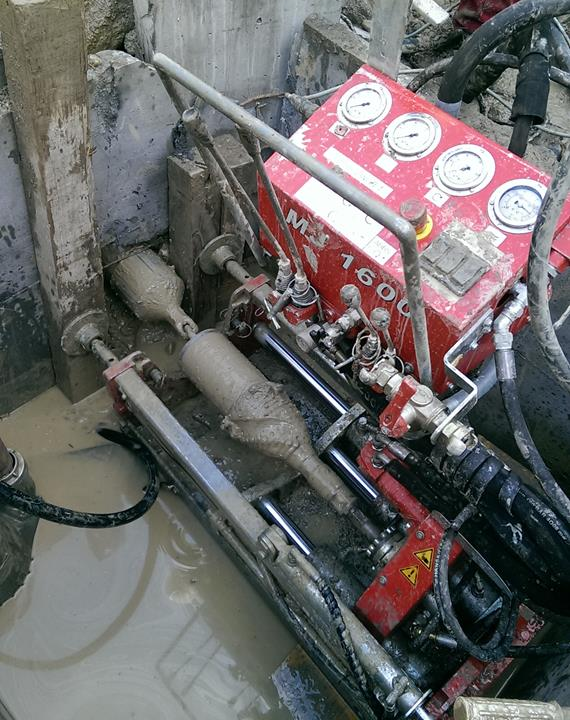

Double cylinder drive (patented)

    Thrust and backreaming of the driving saddle happens by a direct double cylinder drive. This is free of losses, strong and reliable. This new idea from TERRA allows maximum drilling and backreaming forces. The double cylinder operates in both directions with 6 tons.

Double cylinder drive (patented)
Double cylinder drive (patented)


Subsaver

    The drill rod connector is equipped with a subsaver. The replacement of the subsaver goes quick and is inexpensive.

Subsaver
Subsaver

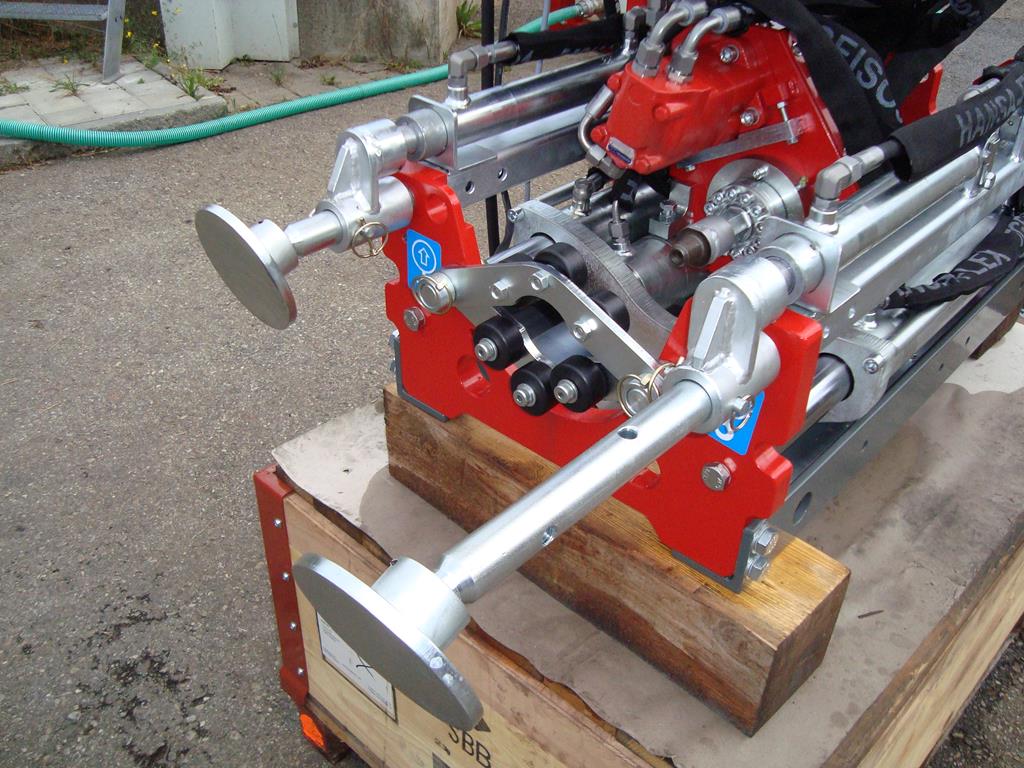

Hydraulic cylinders

    The MJ 1600 is fixed with four hydraulic cylinders into the pit. The integrated check valves assure that the machine cannot move in the pit.

Hydraulic cylinders
Hydraulic cylinders

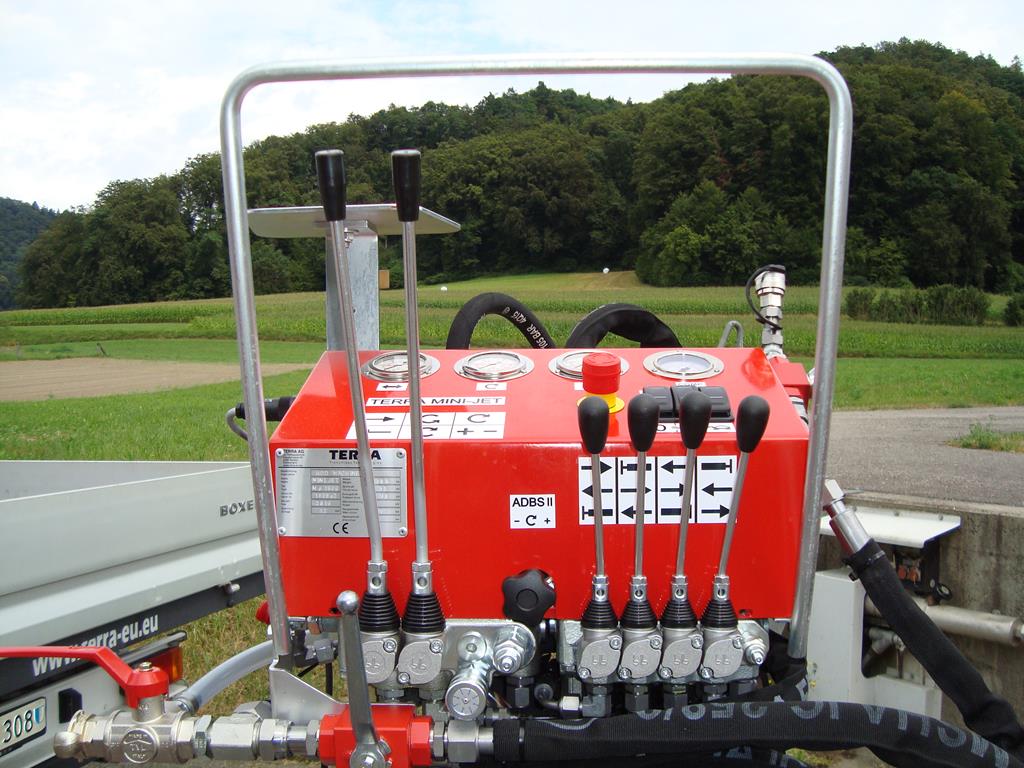

Clear control panel

    All components of the MINI-JET are clearly arranged. The integrated electrical control of the the drilling volume takes place by the control panel. For the locating monitor there is a 12 voltage connection. The launching cradle is equipped with a grounding stake and an electrical strike alarm. The automatic drilling and backreaming system adjust the speed within milliseconds to the ground. With this drilling assistant system even difficult drills can be done.

Clear control panel
Clear control panel

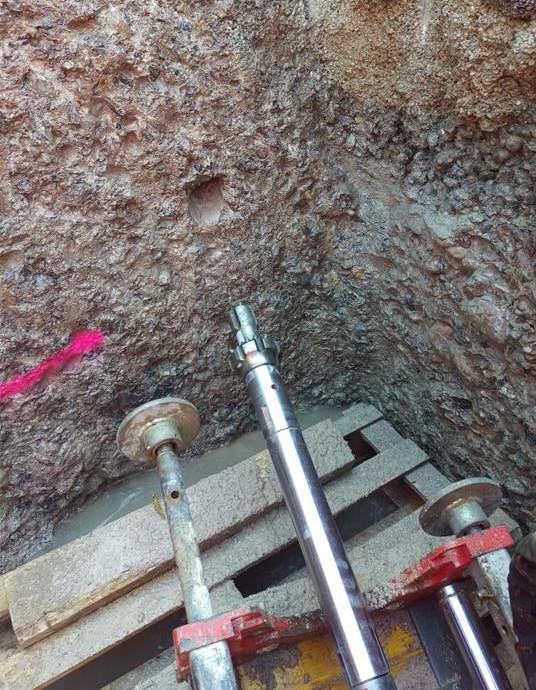

Fluid Rock Drilling

    The MJ 1600 can be equipped with a fluid rock drilling hammer. With this hammer even rock drilling or drilling in mixed ground conditions is no problem. The control panel has an optional integrated connection for the air compressor.

Fluid Rock Drilling
Fluid Rock Drilling

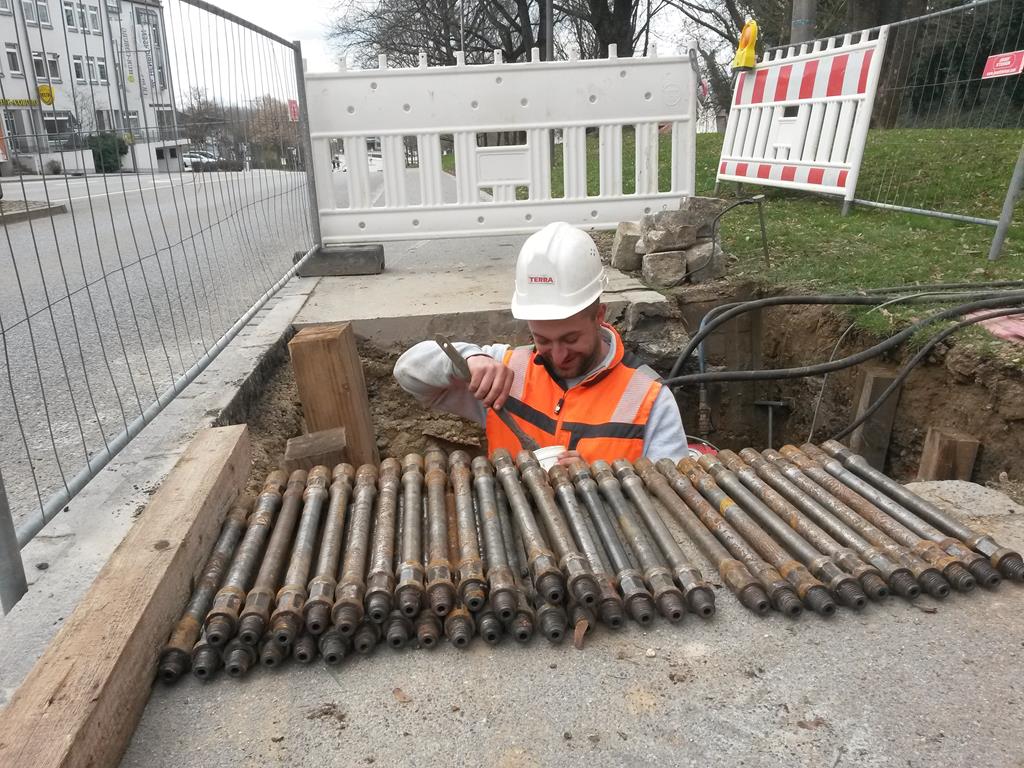

High quality drill rods

    The special drill rods of the MINI-JET are 0,5 m long. They are milled out of one single piece of steel. A bending radius of 15 m can be achieved - also unique worldwide. The drill rod guidance ensures a long lifetime of your drill rods.

High quality drill rods
High quality drill rods


Kubota Diesel Power Pack

    Powered by a proven 3 cylinder KUBOTA Diesel engine with 24 kW (33 HP) the MJ 1600 operates fast and reliable. The main features of the Power Pack are:
  1. the Diesel engine operates at 2’500 r.p.m.
  2. electrical adjustment of the engine speed
  3. supersilent
  4. low Diesel fuel consumption
  5. with 2 independent hydraulic circuits
  6. service friendly

Kubota Diesel Power Pack
Kubota Diesel Power Pack

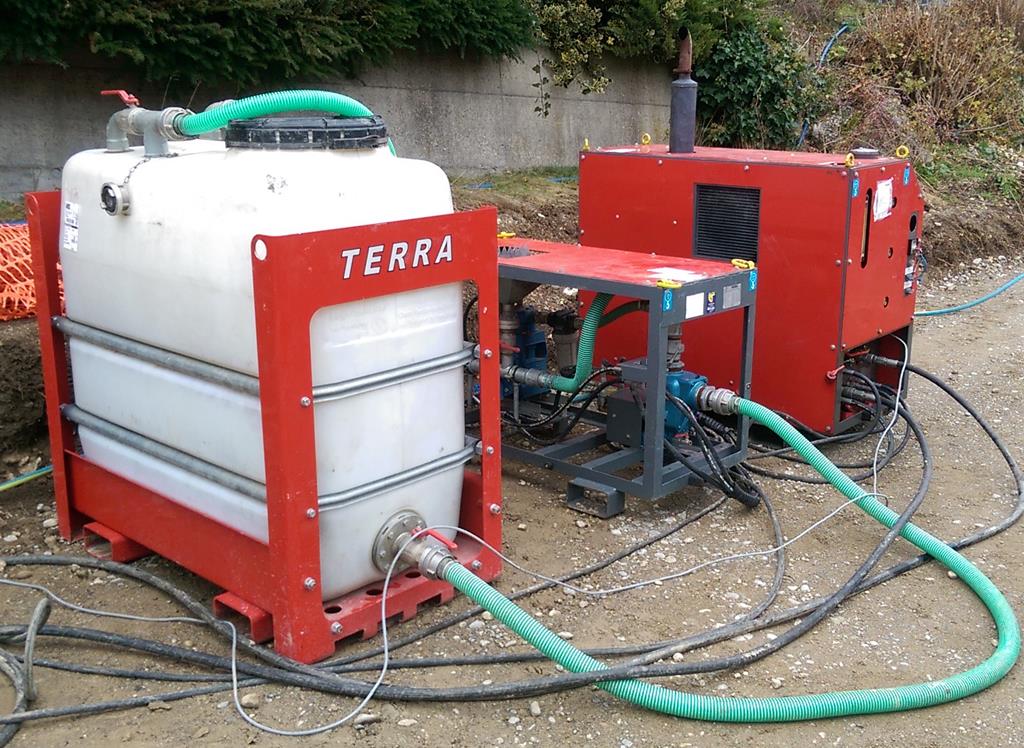

Mixing and Pumping Station

  1. with separate 1'100 ltr-tank (290 gal) for Bentonite or Ejactomer
  2. with support plate for 2 bags of Bentonite each 25 kg (50 lbs)
  3. the Bentonite can be easily filled into the funnel mixing pump with 800 ltr/min (210 gpm)
  4. injector (venturi jet)
  5. 1'100 ltr (290 gal) of drilling fluid are mixed with Bentonite within 4 minutes high pressure drilling fluid pump of FMC
  6. maximum drilling fluid volume: 38 ltr/min (10 gpm)
  7. maximum drilling fluid pressure: 55 bar (800 psi)

Mixing and Pumping Station
Mixing and Pumping Station


Surface launch equipment

  1. For surface launch
  2. Entry angle adjustable between 0°- 45°
  3. With two anchoring plates
  4. The anchoring plates are adjustable in every longitudinal position
  5. For TERRA MINI-JET MJ 1400 and MJ 1600
  6. Weight: 132 kg (290 lbs)
  7. Dimensions: L=1.25 m, W=1.18 m (L=50", W=46.5")

Surface launch equipment
Surface launch equipment


Excavator Frame

  1. optional for all TERRA MINI-JET MJ 1400 and MJ 1600
  2. can be connected to the arm of an excavator or an mini excavator
  3. allows very fast installation of the HDD machine in the pit
  4. the MINI-JET may be driven by the hydraulics of the excavator
  5. the excavator frame is slid onto the TERRA MINI-JET and connected easily
  6. rotates 360° by a hydraulic motor
  7. dimensions: L x W x H = 1.20 m x 0.71 m x 1.75 m (3.96 x 2.13 x 5.78 ft)
  8. weight: 240 kg (530 lbs)

Excavator Frame
Excavator Frame




Technical Data

Technical Data

*   Depending on ground conditions
** Depending on drill rod size
Technical specifications can be changed without previous notice.
pullback force
6 to (60 kN)
13'200 lbs (6.6 US tons)
thrust force
6 to (60 kN)
13'200 lbs (6.6 US tons)
driving power
24 kW (33 PS)
24 kW (33 HP)
torque, 1st speed
1600 Nm
1200 ft.lbs
torque, 2nd speed
-
-
drill rod rotation speed, 1st speed
110 U/min
110 r.p.m
drill rod rotation speed, 2nd speed
-
-
drilling fluid volume
52 l/min
16 gpm
maximum drilling fluid pressure
55 bar
800 psi
noise emission in 7 m distance
-
-
noise emission at operators ear
-
-
pilot bore diameter
Ø 60 - 100 mm
Ø 2.4" - 4"
maximum backream diameter*
Ø 300 mm
Ø 12"
maximum drilling length *
50 m
165 ft
drill rods, length
0.5 m
1.65 ft
drill rods, diameter
Ø 30/40 mm
Ø 1.2" / 1.6"
minimum turning radius**
15 m
50 ft
Dimensions pit cradle LxWxH
1.11 x 0.60 x 1.15 m
3.66 x 2.0 x 3.8 ft
weight of the pit cradle
ca. 280 kg
620 lbs


 up
