Mixing Station MS 700

2000 - 4000 l

MS 700 - Highest efficiency and performance

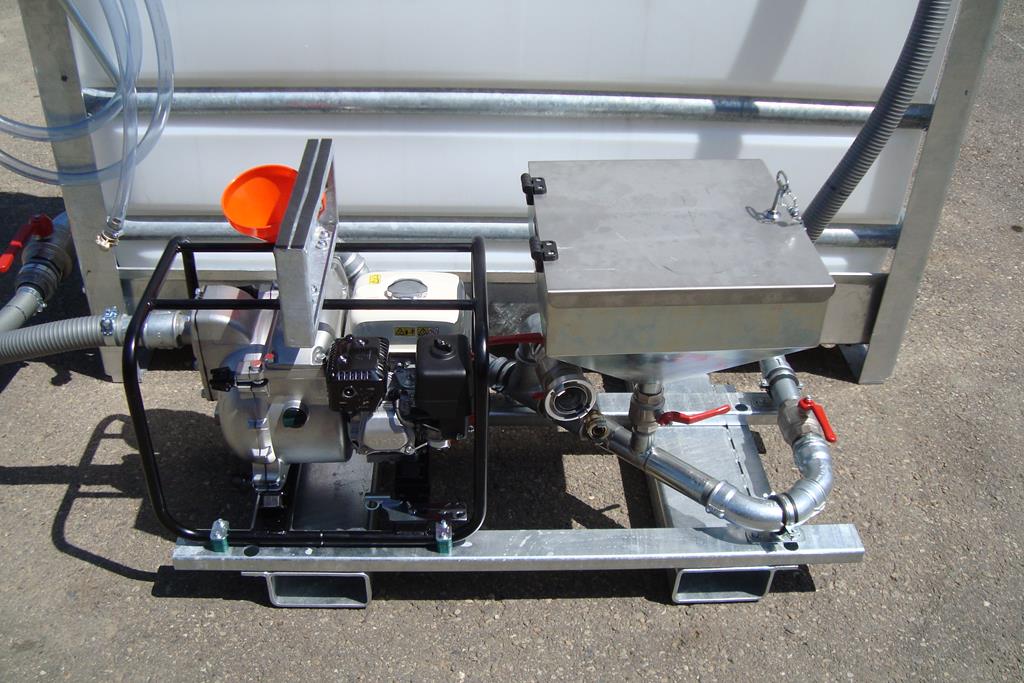

    The MS 700 fluid mixing system was designed to provide highest performance and efficiency at low costs. Powered by a proven HONDA mixing pump it offers up to 700 ltr/min (200 gpm) of drilling fluid. It is equipped with a 2000 ltr (530 gal) tank for maximum fluid capacity. Optionally TERRA even offers a second tank for higher fluid capacity. The MS 700 supports horizontal directional drilling systems of all sizes.

MS 700 - Highest efficiency and performance
MS 700 - Highest efficiency and performance

High speed injector

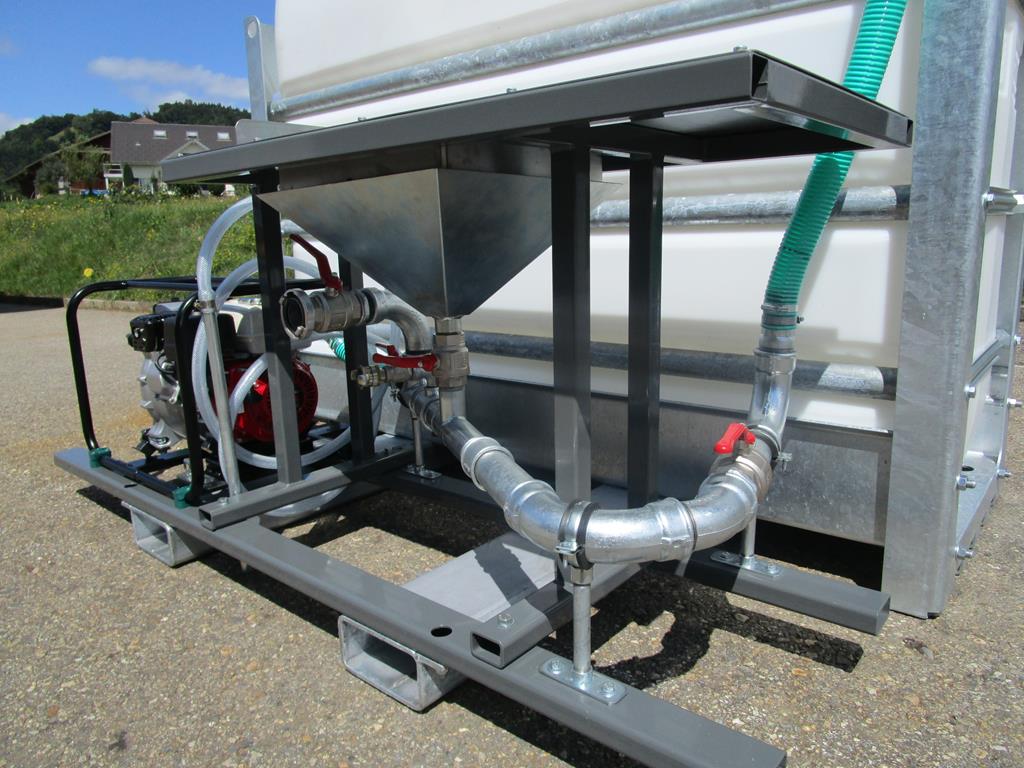

    The high speed injector is equipped with a big funnel for 25 kg (55 lbs) of bentonite. Next to it is a cleaning pipe with hose. It cleans the injector if it gets stuck.

High speed injector
High speed injector

Funnel with underpressure (Venturi system)

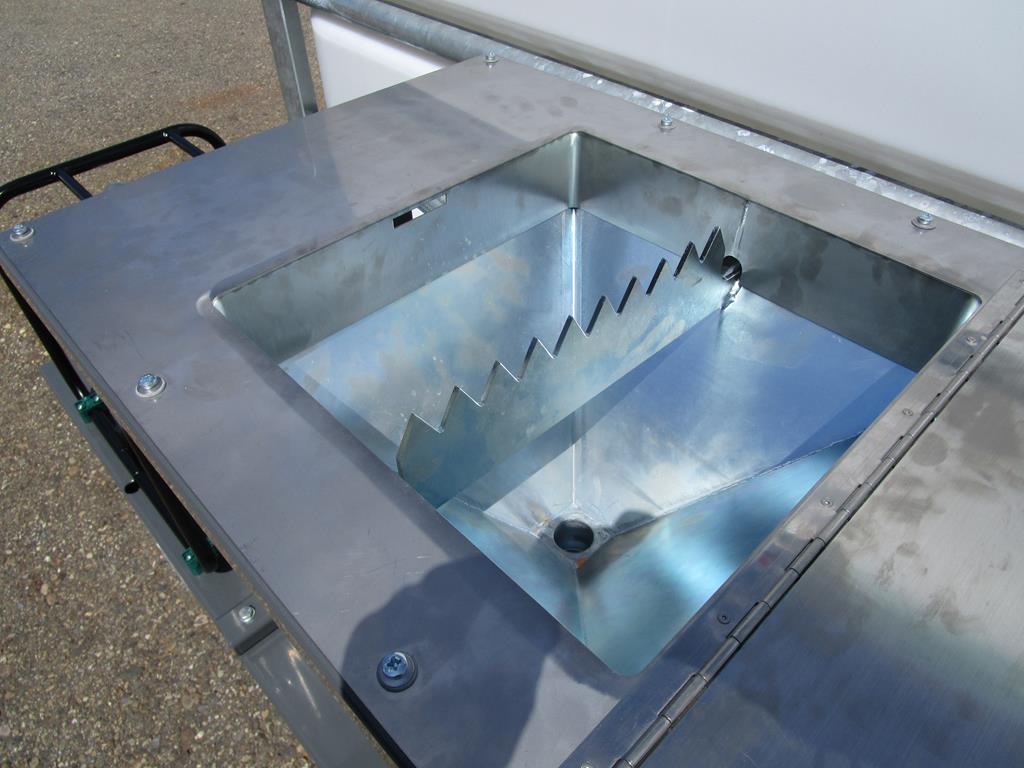

    The big funnel with cutting knife makes your HDD live easier on the jobsite. The cutting knife in the funnel opens the bentonite bags. A 25 kg (55 lbs) bag of bentonite can be placed besides the funnel. Due to the venturi pipe there is an underpressure in the whole system. The bentonite is sucked into the mixing unit which provides a reliable mixing.

Funnel with underpressure (Venturi system)
Funnel with underpressure (Venturi system)

2000 ltr (550 gal) or 2x2000 ltr (2x550 gal) tank with bottom flushing

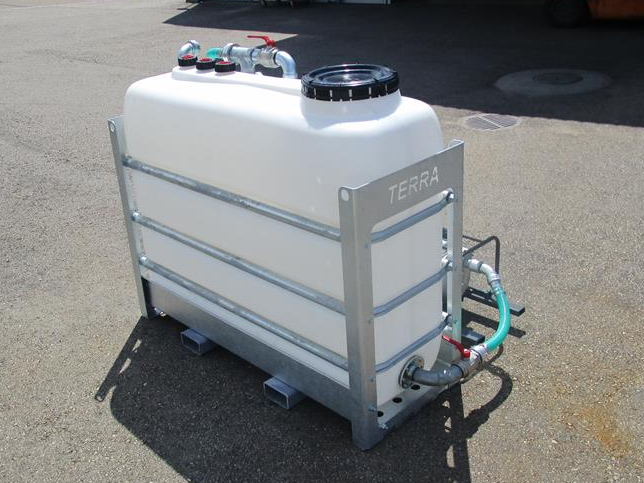

    The MS 700 is standardly equipped with a 2000 ltr (550 gal) tank. TERRA also offers a second tank for a higher drilling fluid capacity. The tank has integrated a special bottom flushing system. It prevents that the bentonite settles down at the bottom. It is fed from the top and can be opened with an user friendly regulation valve.

2000 ltr (550 gal) or 2x2000 ltr (2x550 gal) tank with bottom flushing
2000 ltr (550 gal) or 2x2000 ltr (2x550 gal) tank with bottom flushing

Compact design

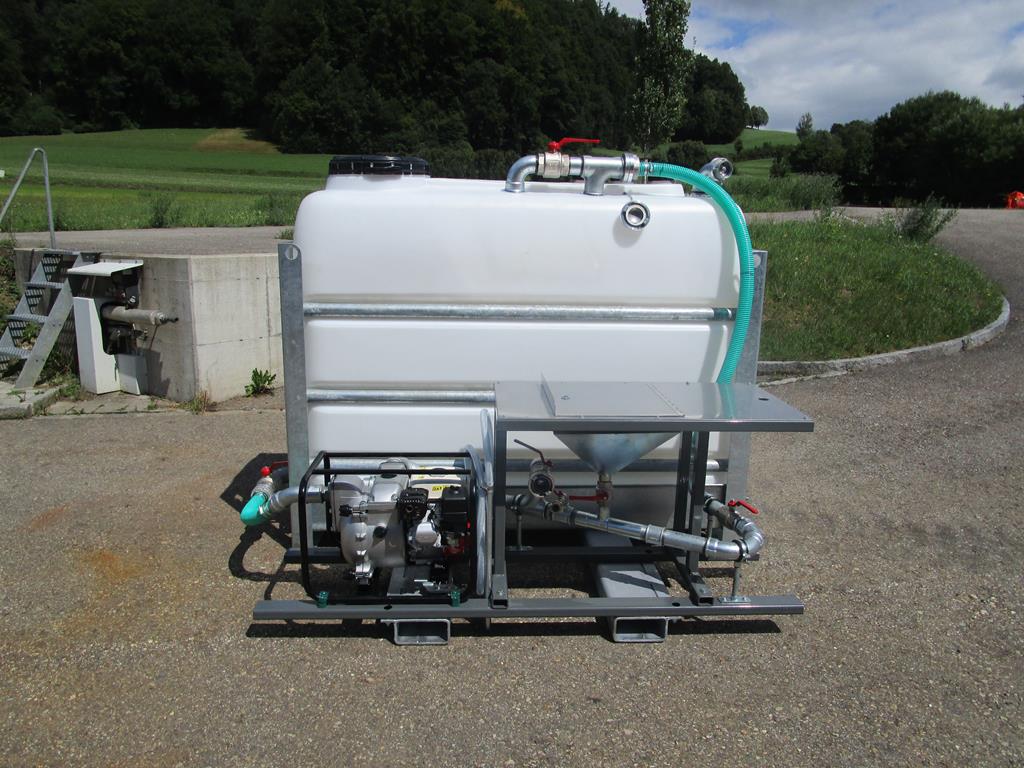

    The MS 700 has a very compact design. It can be installed easily on a truck without taking too much space. The mixing station can be lifted with a fork lift or with a crane or excavator at the four lifting eyes. If lifted, the tank must always be empty.

Compact design
Compact design



Technical data

Technical data



Technical specifications can be changed without previous notice.
Power, mixing pump
5 PS (4 kW)
5 HP (4 kW)
Fuel
Benzin
Petrol
Pump discharge rate
700 l/min
185 gpm
Fluid pressure
26 m (2.6 bar)
377 psi
Flow rate to boring unit
25 m (2.5 bar)
360 psi
Typical mixing time per 1'000 ltr of water
5 min
5 min
Distance to boring unit
60 m
200 ft
Mixing hopper capacity
25 kg
55 lbs
Drilling fluid tank capacity
2000 / 4000 l
530 / 1060 gal
Dimensions with one tank L x W x H
2300 x 1400 x 1950 mm
90 x 55 x 77 in
Dimensions with two tanks L x W x H
2300 x 2200 x 1950 mm
90 x 87 x 77 in
Weight with one tank (empty)
780 kg
1720 lbs
Weight with two tanks (empty)
1430 kg
3150 lbs

Your benefits

Service-friendly:

Simple construction provides highest reliability

All on board:

including complete mixing system

One-man-operation:

Saves you time and money
