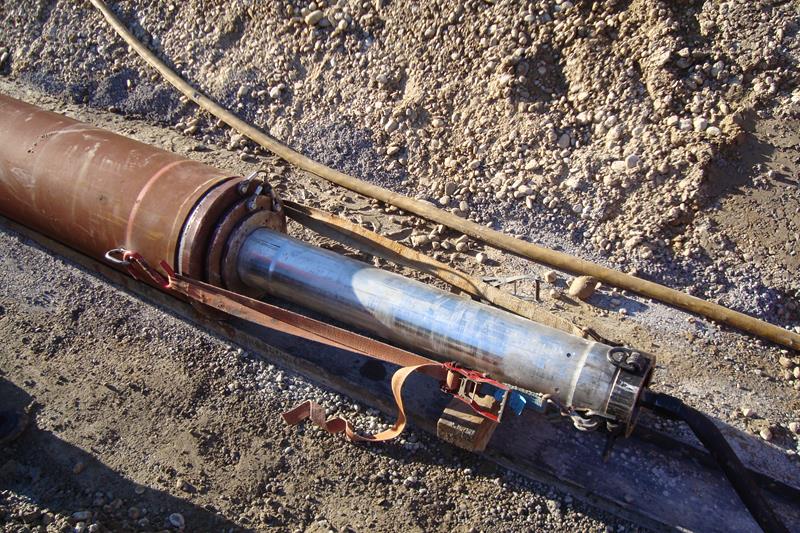

TERRA-HAMMER TR 220

Steel pipes up to ø 600 mm (ø 24")

Allgemeine Infos

    The TR 220 only requires 7 m3/min which makes the TR 220 one of the most efficient rams in its class. It requires 40 % less air consumption than competitors rams. Our Swiss engineers have designed a compact machine with a very high impact main piston.


  1. For steel pipe diameter: 150 – 400mm (6" - 16")
  2. Ramming force: 155 tonnes (170 US tonnes)
  3. Air requirement: 4 m3/min (140 cfm)
  4. Length: 0.90 m (3 ft)

Allgemeine Infos
Allgemeine Infos




Technical Datas

Technical Datas

T = TERRA-HAMMER with fused on earth displacement head
TU = TERRA-HAMMER with interchangeable head adapters
TR = TERRA-RAM, for steel pipe ramming and pipe bursting (berstlining)
S = TERRA-HAMMER Version S, with quick reverse (1/4 turn of the air hose)
F = TERRA-HAMMER Version F, with remote control reverse
S/F = TERRA-HAMMER, available in Version S and Version F
K = TERRA-HAMMER Version K, not glued, can be serviced without heating
SK = TERRA-HAMMER Version S + Version K
KOK-LD = TERRA-HAMMER with traceable KOK-LD adapter


Technical specifications can be changed without previous notice.
Diameter
220 mm
9"
Steel pipe diameter
100 - 600 mm
4" - 24"
Length
1.6 m
63"
Weight
315 kg
693 lbs
Impact
370 to
410 US tons
Frequency
320 /min
320 /min
Air consumption
7 m3/min
247 cfm
Pressure
6 -7 bar
85 - 100 psi


 up
