TERRA-JACK 200

Directional rod pusher 20 t

House connections up to ø 160 mm

    The TERRA-JACK 200 is the ideal machine for short and directional road crossings in displaceable soil. Especially where space is limited, the compact size of the unit shows it advantages. It can easily be dismantled into light and transportable components. The JACK 200 can be used for pit and cellar operations. It is the most efficiant way to put more pipes into the ground.

    As a typical entry-level machine in the trenchless pipeline construction, the TERRA-JACK 200 can be used successfully for directional pipe laying for house connections or short road crossings. It has a thrust force of 140 kN (14 t) and a pulling force of 200 kN (20 t).

    The TERRA-JACK 200 is typically used in the areas of house connections, road or garden crossings, where lengths of 30 m and more are required. With the aid of a transmitter behind the drill head, the pilot bore can be controlled. The minimum bending radius of the rods is 25 m. The bore channel can be expanded upt o 220 mm to pull in plastic pipes up to 160 mm.

    The machine can be driven by a robust power pack or an external mini-excavator or backhoe.

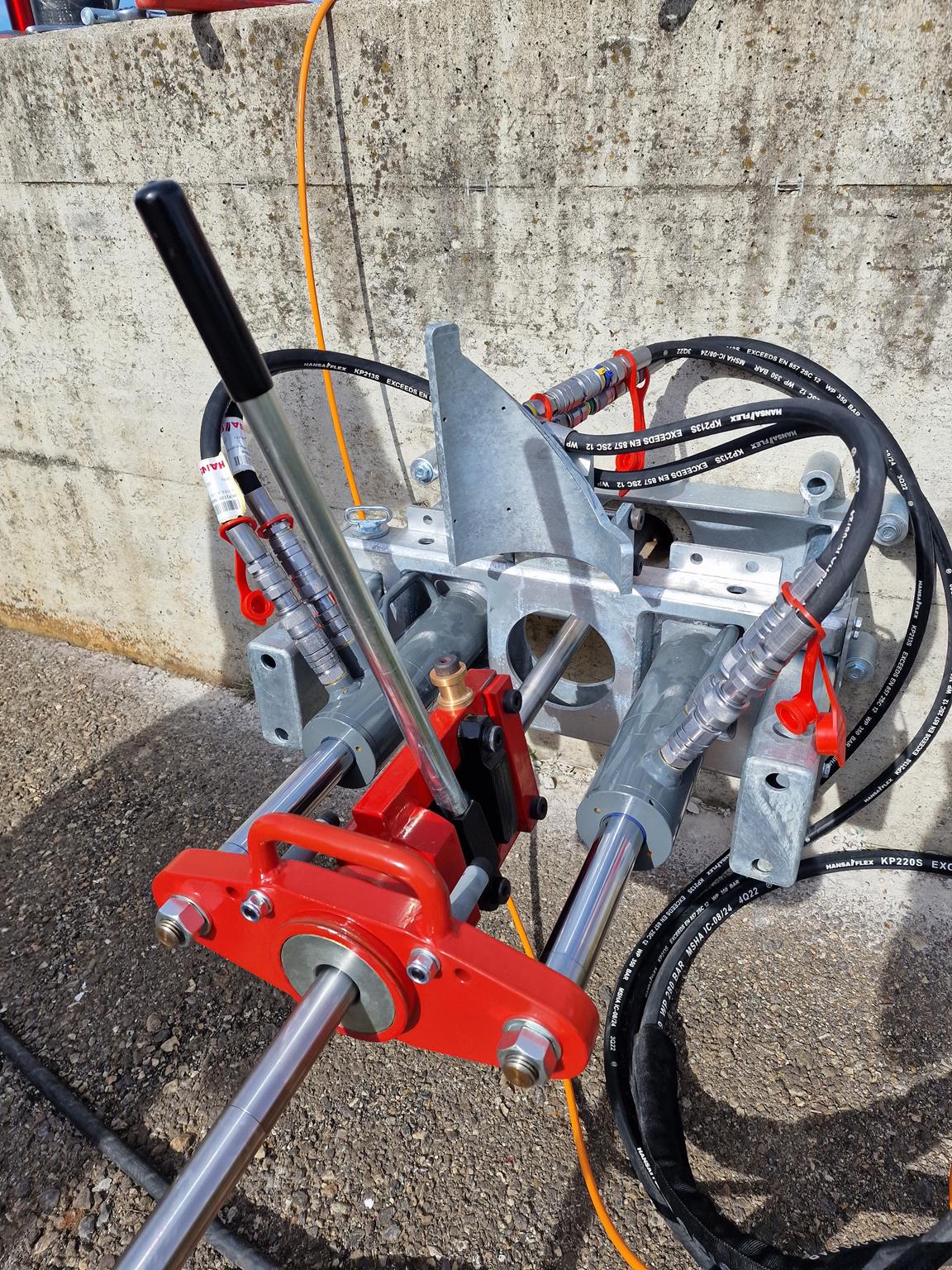

House connections up to ø 160 mm
House connections up to ø 160 mm

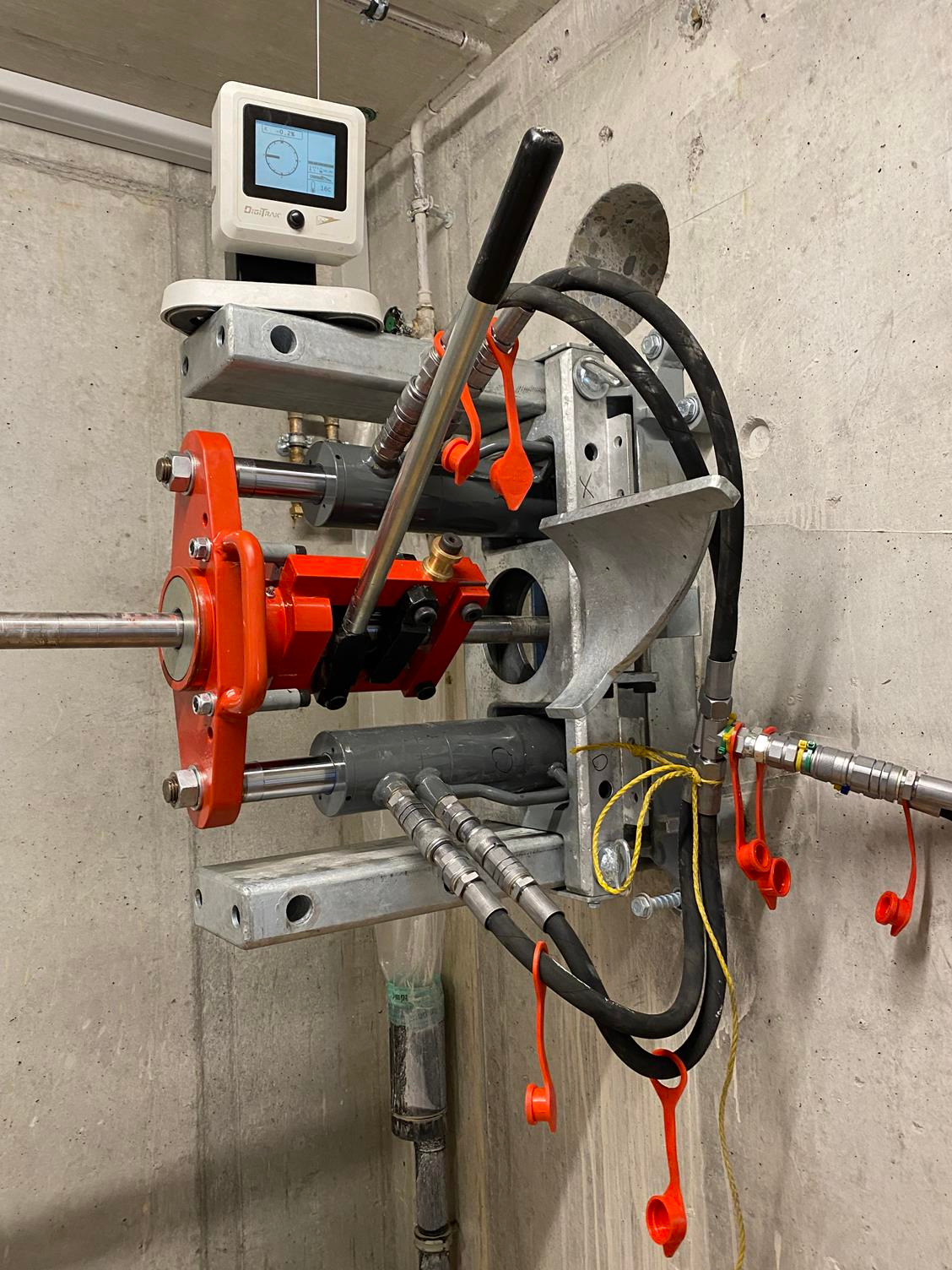

Basement operation

    The TERRA-JACK 200 is due to its high pulling force of 200 kN (20 t) and its possibility to dissassemble the whole unit the ideal machine to lay pipes with an outer diameter of up to 160 mm. TERRA offers various starting and safety accessories for the cellar and pit operation.
    The TERRA-JACK 200 can be easily and quickly assembled into a few components. The four main components (front plate, two hydraulic cylinders, clamping unit) weigh max. 24 kg each. For optimal positioning of the hydraulic hoses, the hydraulic cylinders can be turned by 120°. The wall flange is mounted on the wall of the cellar. It has an opening width of 170 mm for PE pipes OD 160 mm. It can either be installed horizontally or vertically, depending on the space available.
    The wall flange is equipped with several positions to fix the TERRA-JACK 200 in it. It offers a front position for the pilot bore and a rear position for the pulling procedure. This means that all tools including the pulling head and the pipe can be pulled into the basement. An installation template for marking the drill hole positions and special concrete screws speed up the wall flange installation.

Basement operation
Basement operation

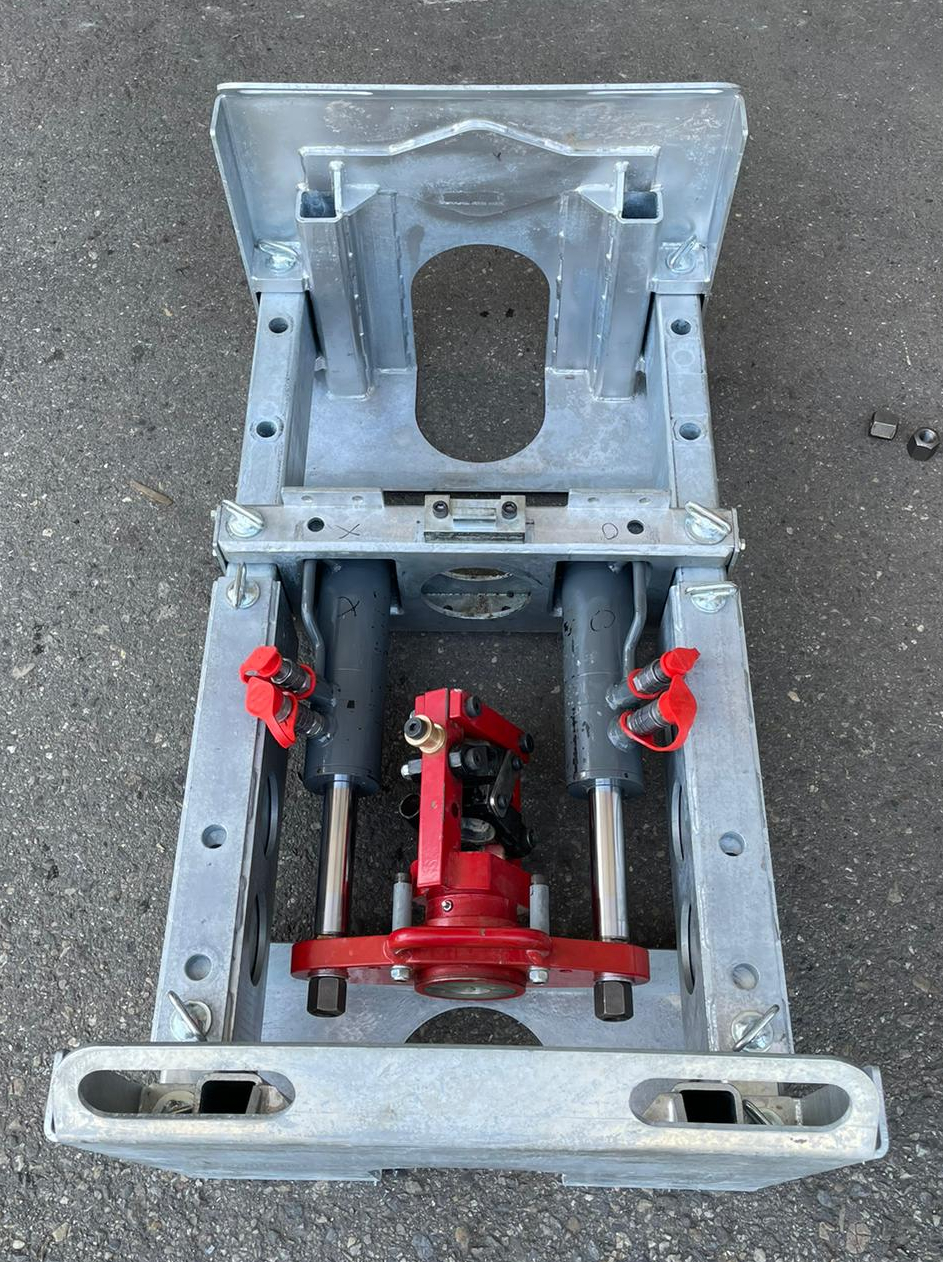

Pit shoring

    When using the TERRA-JACK 200 in the pit, the dismountable pit shoring provides for a distribution of the tensile forces.

Pit shoring
Pit shoring

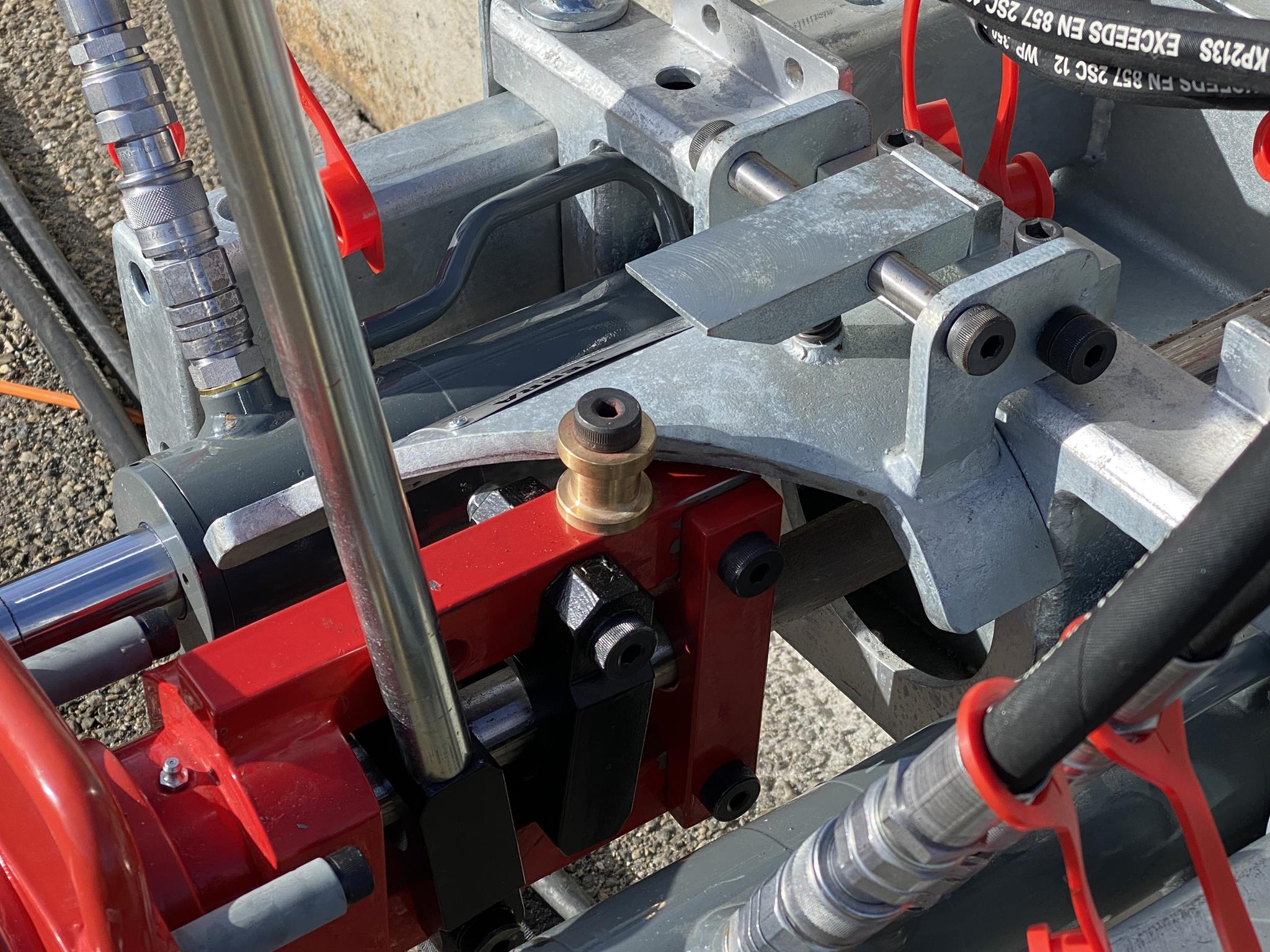

Automatic steering system

    A patented automatic steering system simplifies the steering in soft ground: the clamping unit is automatically rotated during operation, which eliminates the need to turn the boom by hand using the control lever.

Automatic steering system
Automatic steering system

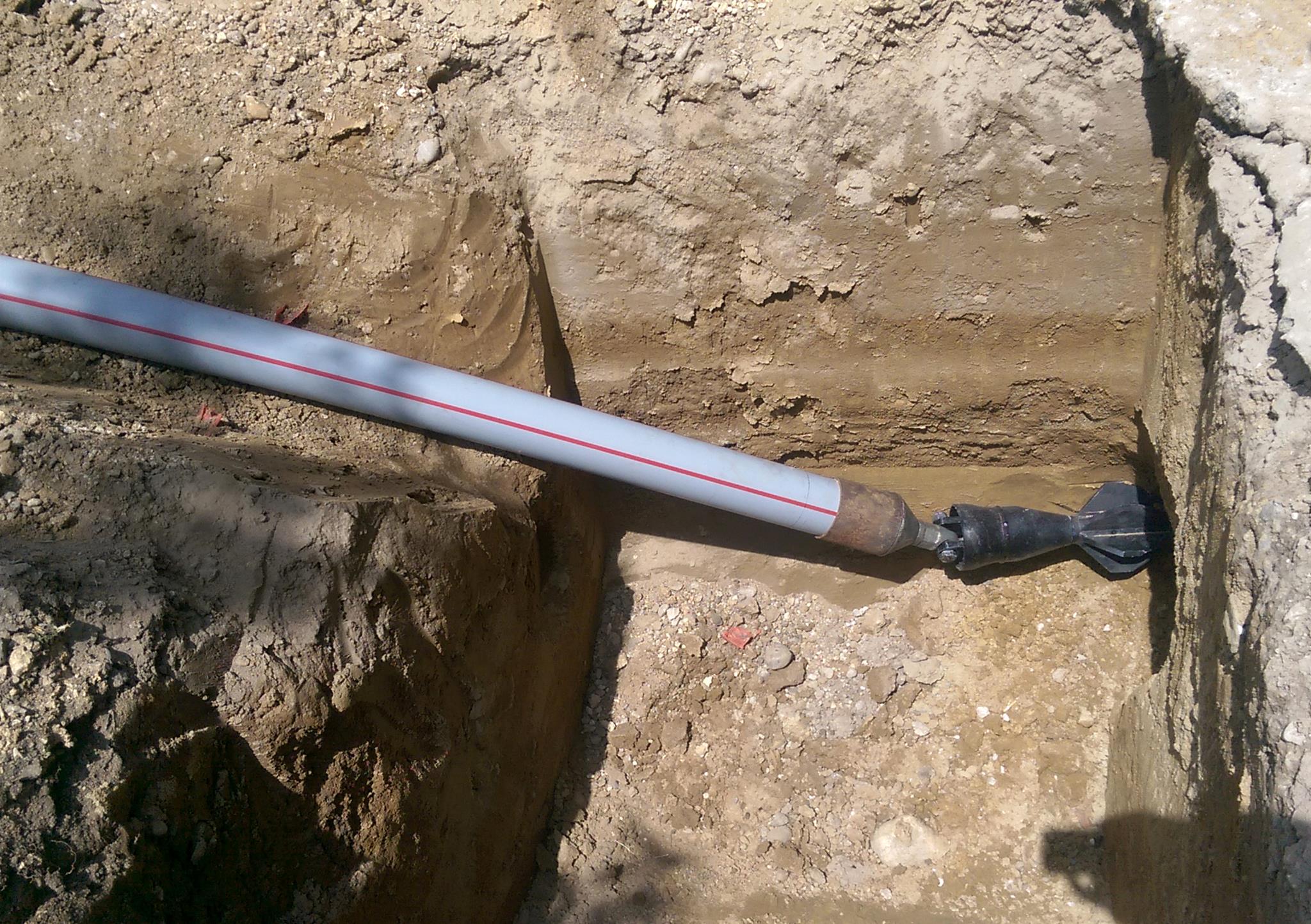

Expanding up to 220 mm

    After the pilot bore, the drill head and sonde housing are dismantled and replaced by an expander cone. The expander cone expands the bore channel during pipe pulling. It protects the pulling head from falling soil material. Depending on the ground conditions, expander cones up to ø 220 mm can be used and PE pipes with OD up to 160 mm can be pulled in.

    Expander stars are used for the pre-weakening and loosening of the subsoil. They thus facilitate the pipe pull-in and are mounted in front of the expander cones.

Expanding up to 220 mm
Expanding up to 220 mm

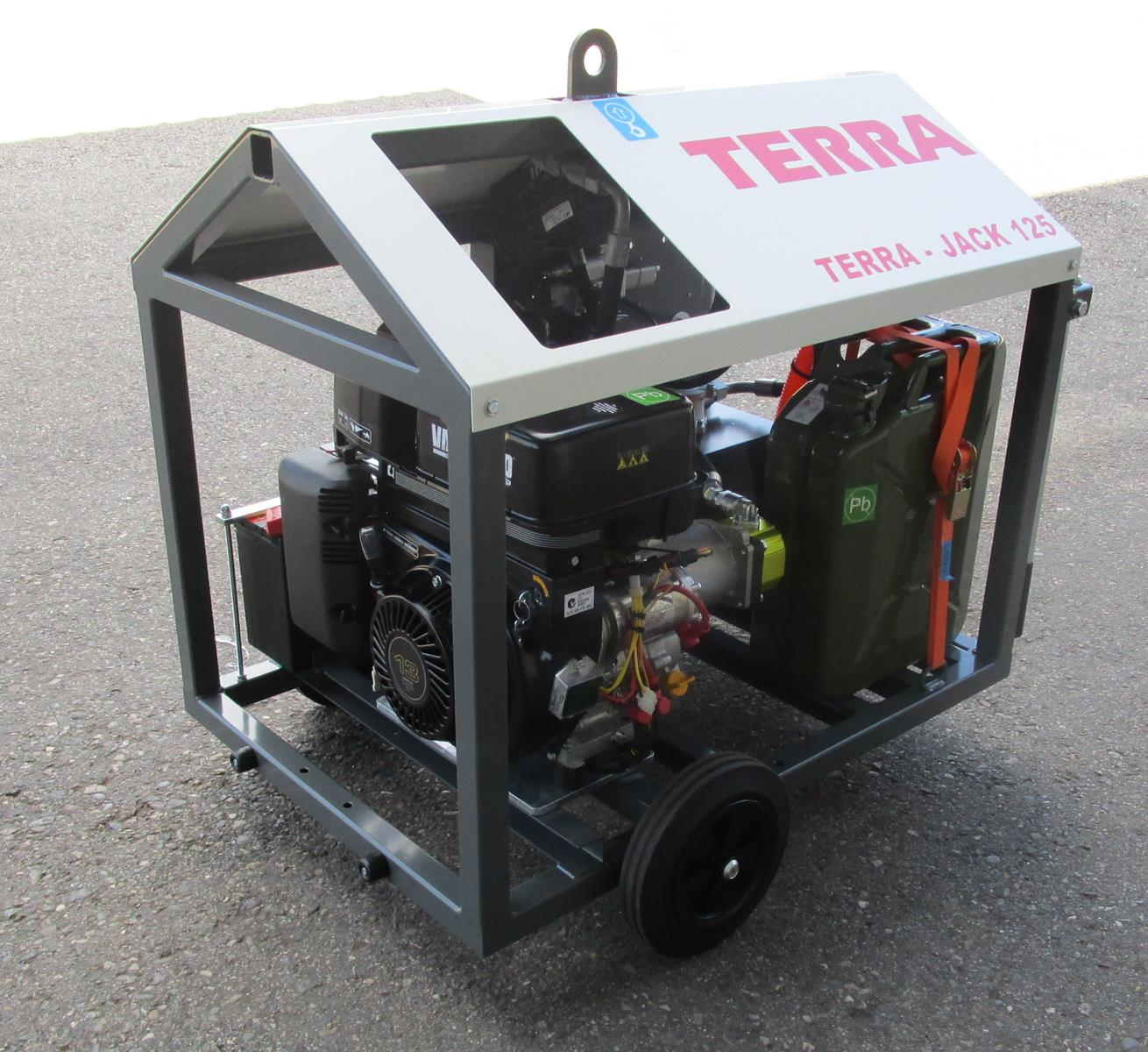

Rato Power Pack

    The TERRA‐JACK is powered by a proven 23 HP strong Rato petrol power pack. It offers up to 40 l/min at 235 bar. The TERRA-JACK can also be driven by a mini‐excavator or a backhoe.

Rato Power Pack
Rato Power Pack

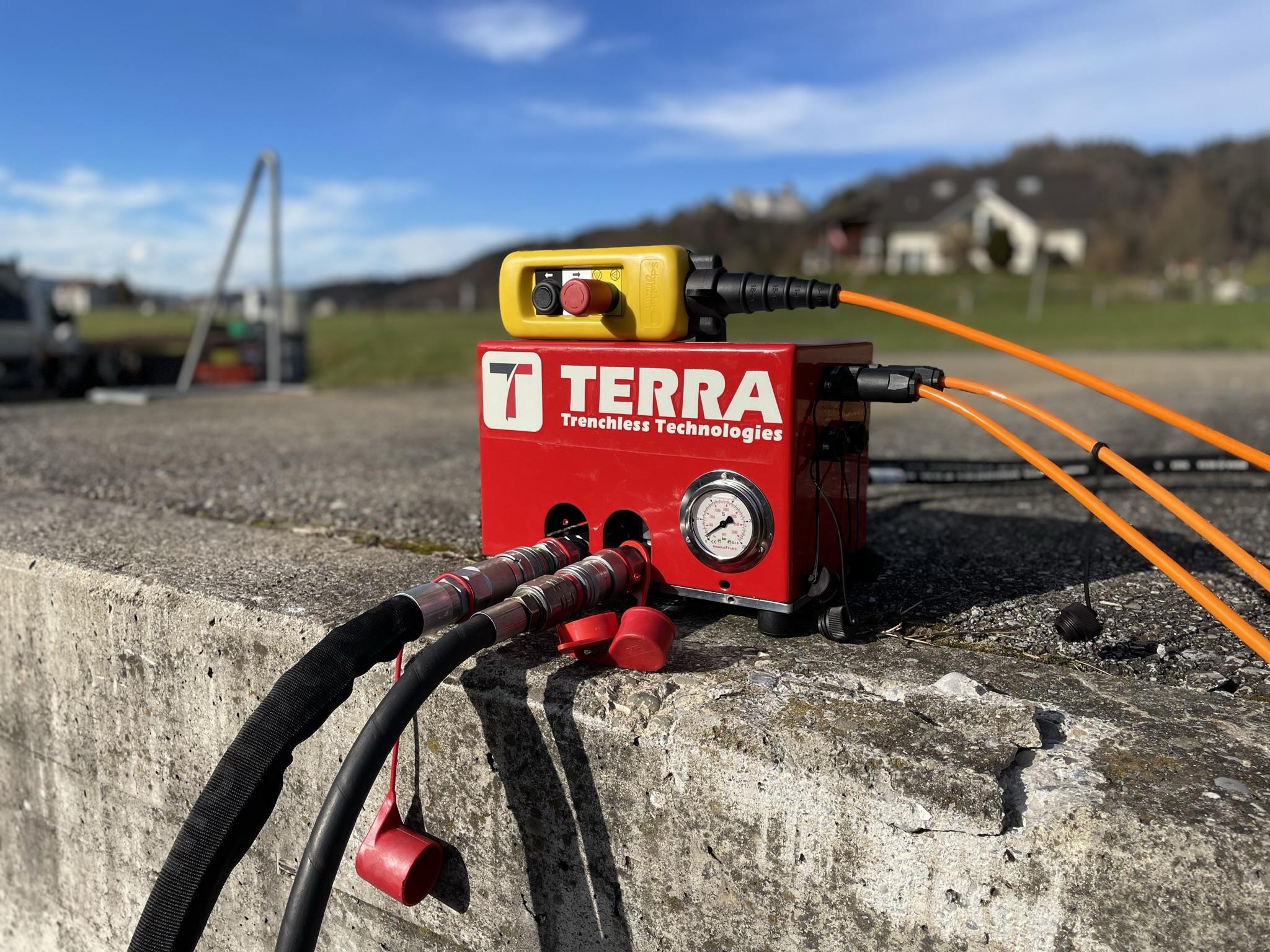

Control unit

    The control unit controls the hydraulic cylinders. It is assembled between the hydraulic power pack and the TERRA‐JACK.

Control unit
Control unit




Technical Specifications

Technical Specifications

*   Depending on ground conditions. Only in easily displaceable ground.

Technical specifications can be changed without previous notice.
MACHINE UNIT
Thrust force
140 kN (14 t)
31,000 lbs
Pullback force
200 kN (20 t)
45,000 lbs
Pilote bore, diameter
45 mm
2"
Expanding diameter, max.
160 mm
6.5"
Pushing length, max.
30 m
100 ft
Drill rod, length
0.5 / 1.0 m
1.5 ft / 3.0 ft
Drill rod, diameter
ø 33 mm
1.5"
Drill rod, bending radius
25 m
80 ft
Dimensions L x W X H (without frame)
0.45 x 0.65 x 0.30 m
17 x 25 x 12"
Weight, complete
90 kg
200 lbs
Weight, dissassembled (front plate, cylinder, clamping unit)
24 kg
50 lbs
POWER PACK
Power (petrol)
23 PS (17 kW)
23 HP
Hydraulic oil
40 l/min bei 235 bar
10 gpm @ 3,400 psi
Voltage
12 V, 5 A
12 V, 5 A
Petrol tank
4.5 l
1.5 gal
Reserve tank
20 l
5.5 gal
Hydraulic oil tank
25 l
6.5 gal
Dimensions Power Pack L X W X H
1.00 x 0.85 x 1.00 m
3.0 x 2.5 x 3.0 ft
Weight (without fuel)
195 kg
430 lbs
Weight (with fuel)
240 kg
530 lbs
